Reorganize dashboard to maximize horizontal screen space on desktop #89

New Issue

Open

opened 2026-07-12 15:53:47 +02:00 by Blaim · 0 comments

Blaim commented 2026-07-12 15:53:47 +02:00

Copy Link

Description

I would like to propose a redesign of the main dashboard to make much better use of horizontal screen space on desktop monitors, taking inspiration from the official slicer.

The current KX-Bridge dashboard stacks the Camera, Progress, and Temperatures into massive, full-width blocks. This squashes the camera feed, makes the temperature numbers unnecessarily huge, and forces the user to scroll down for basic controls.

I propose reorganizing the dashboard into a wide layout, similar to Ancyubic Slicer Next:

• Top Row (Full Width): Progress card spanning the entire top, allowing for a wide timeline view.
• Left Column (Massive): A much larger, taller Camera feed directly below the progress bar.
• Center Column (Compact): A consolidated "Print Settings" wrapper (grouping Nozzle/Bed temps, Print Speed, and Fan controls) scaled down visually to save space, with the AMS/Filament management below it.
• Right Column (Narrow): Axis Move / Motion controls.

Motivation

This redesign drastically improves usability on desktop monitors:

• Better Camera View: By placing the camera in its own dedicated, widened column rather than forcing it to share vertical space, the max-height restriction can be removed, allowing for a much larger and clearer view of the print bed.
• Space Efficiency: Bed and Nozzle temperatures don't need to be so huge and spread across the entire screen. Grouping them with speed and fan controls and applying slight CSS scaling to shrink the UI elements, cleans up the dashboard and eliminates scrolling.
• Familiarity: It aligns the KX-Bridge user experience closely with the official Anycubic Slicer Next interface, making it more intuitive for users switching between the two.

Proposed Implementation

Based on the current index.html and /kx/ui/style.css, this can be achieved cleanly using CSS Grid Areas for larger screens without breaking the mobile layout.

1. HTML Adjustments (index.html)

Currently, inline styles force the cards to be full width, and missing IDs make them hard to target.

Remove style="grid-column:1/-1" from the <div class="card"> elements for Camera, Progress, Temperatures, and the AMS card.

Add explicit IDs to the main cards (e.g., id="card-camera", id="card-progress", id="card-motion").

Wrap the Print Settings: Group the Temperatures, Print Speed, and Fan cards inside a new wrapper so they act as a single column block in the grid:

<div id="column-settings" style="display: flex; flex-direction: column; gap: 16px;">
  <!-- Insert Temperature Card here -->
  <!-- Insert Print Speed Card here -->
  <!-- Insert Fan Card here -->
</div>

2. CSS Adjustments (/kx/ui/style.css)

Introduce a specific grid-template-areas map for screens wider than 1100px to create the layout, placing the progress bar across the top:

@media(min-width: 1100px) {
  .grid {
    display: grid;
    grid-template-columns: 2.8fr 1fr 0.9fr; /* Camera massively widened, right columns narrower */
    grid-template-areas:
      "progress progress progress"
      "camera   settings motion"
      "camera   ams      motion";
    gap: 16px;
    align-items: start;
  }

  /* Map cards to the new grid areas */
  #card-progress { grid-area: progress; }
  #card-camera { grid-area: camera; height: 100%; display: flex; flex-direction: column; }
  #column-settings { grid-area: settings; display: flex; flex-direction: column; gap: 16px; }
  #d-ams-card { grid-area: ams; }
  #card-motion { grid-area: motion; }

  /* Visually shrink the control elements for space efficiency */
  .temp-card-inner { zoom: 0.9; }
  #card-speed .spd-btn, .step-btns .step-btn { padding: 4px 8px; font-size: 11px; }
  #card-motion .joypad { zoom: 0.85; margin: 0 auto; }
}

3. Allow Camera to Grow

Remove the max-height: 320px constraint from .cam-wrap and .cam-wrap img in the stylesheet, and give it a larger min-height (e.g., 550px) so the camera can stretch vertically to fill its massive new dedicated left-column area.

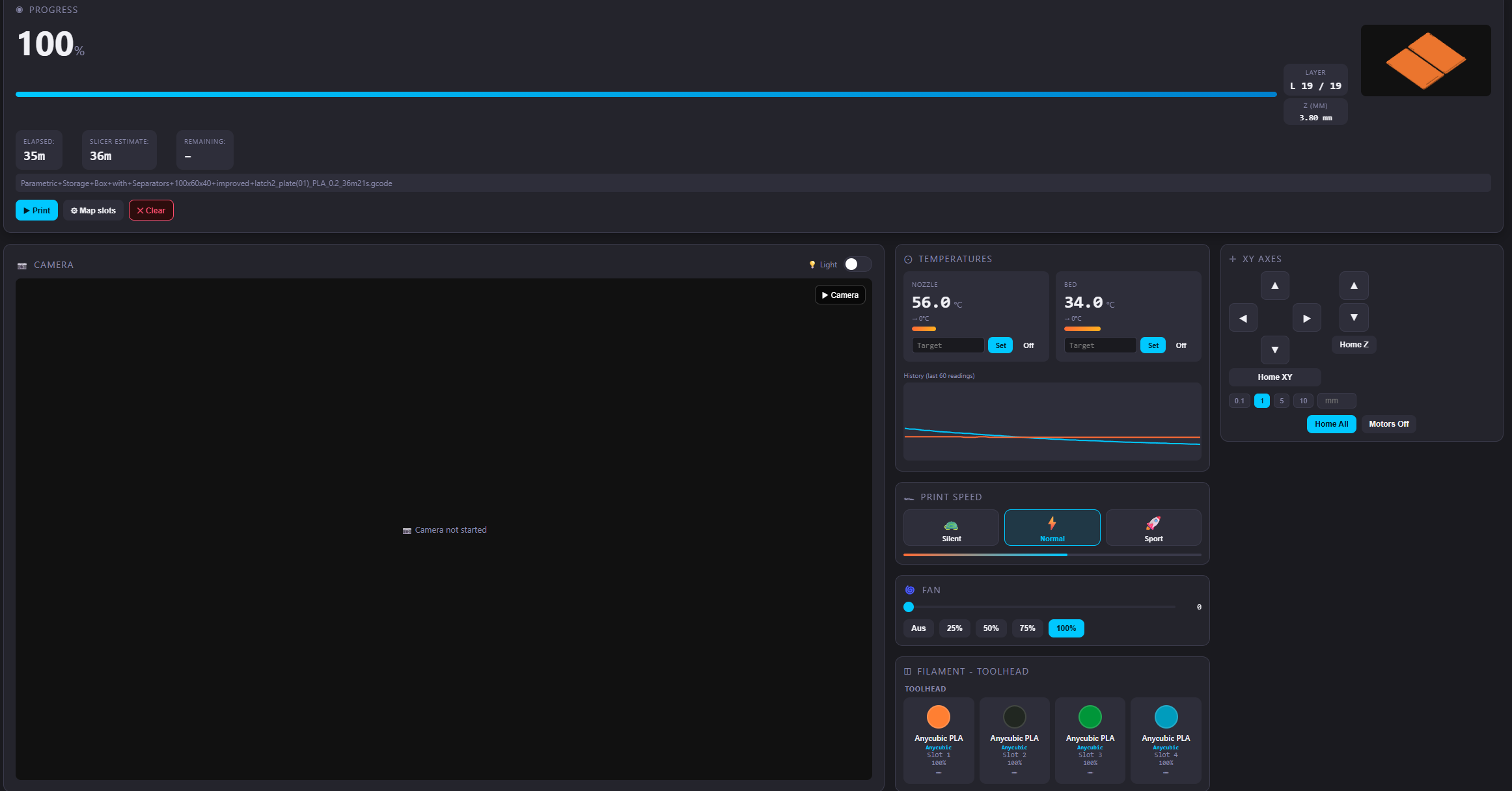

4. Proof of Concept

I have attached a modified index.html to this issue as a working example. Please note that this is just a quick proof of concept and not a perfect, final implementation!

There are still some minor layout quirks at specific intermediate resolutions (for example, the camera card temporarily jumps to the top right just before the screen narrows enough to trigger the mobile layout fallback or the progress bar at the top could be even smaller). It will definitely need some fine-tuning, but the attached file should give a great feel about what I mean.

index.html

<!DOCTYPE html>
<html lang="de" data-theme="dark">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width,initial-scale=1">
  <title>KX-Bridge</title>
  <link rel="stylesheet" href="/kx/ui/style.css">
  <link rel="stylesheet" href="/kx/ui/lib/pickr-nano.min.css">
  <script src="/kx/ui/lib/pickr.min.js"></script>

  <style>
    /* Desktop-optimiertes Layout (Slicer-Stil) */
    @media(min-width: 1100px) {
      #panel-dashboard .grid {
        display: grid;
        grid-template-columns: 2.8fr 1fr 0.9fr; /* Kamera massiv verbreitert, rechts schmaler */
        grid-template-areas:
          "progress progress progress" /* Fortschritt komplett über die volle Breite! */
          "camera   settings motion"
          "camera   ams      motion"; /* Kamera nimmt den gesamten Platz links ein */
        gap: 16px;
        align-items: start;
      }

      #card-progress {
        grid-area: progress;
      }

      /* Thumbnail auf dem breiten Balken rechts floaten */
      #card-progress #d-thumbnail {
        float: right;
        width: auto !important;
        max-width: 200px;
        height: 110px;
        margin-left: 20px;
        margin-bottom: 0;
      }

      /* Zeit-Blöcke nebeneinander auf breiten Displays */
      #card-progress .time-grid {
        display: flex;
        gap: 30px;
        justify-content: flex-start;
      }

      #card-camera {
        grid-area: camera;
        display: flex;
        flex-direction: column;
        height: 100%;
      }

      #column-settings {
        grid-area: settings;
        display: flex;
        flex-direction: column;
        gap: 16px;
      }

      /* Einstellungs- und Motion-Karten kompakter machen (Wunsch) */
      #column-settings .card, #card-motion, #d-ams-card {
        padding: 12px;
      }

      #column-settings .card-title, #card-motion .card-title, #d-ams-card .card-title {
        font-size: 13px;
        margin-bottom: 10px;
      }

      /* Visuelles "Schrumpfen" der Kontroll-Elemente */
      .temp-card-inner { zoom: 0.9; }
      #card-speed .spd-btn { padding: 4px 8px; font-size: 11px; }
      #card-motion .joypad { zoom: 0.85; margin: 0 auto; }
      .step-btns .step-btn { padding: 4px 8px; font-size: 11px; }

      #card-motion {
        grid-area: motion;
      }

      #d-ams-card {
        grid-area: ams;
      }

      /* Kamera unbegrenzt nach unten/oben wachsen lassen */
      #card-camera .cam-wrap {
        flex: 1;
        display: flex;
        flex-direction: column;
        justify-content: center;
        align-items: center;
        position: relative;
        min-height: 550px; /* Noch viel größere Mindesthöhe für die Kamera */
        max-height: none !important;
        background: #111;
        border-radius: 8px;
        overflow: hidden;
      }

      #card-camera #cam-img {
        width: 100% !important;
        height: 100% !important;
        object-fit: contain;
        max-height: none !important;
      }
    }

    /* Fallback-Sicherheit für kleinere Displays (Wrapper wird aufgelöst) */
    @media(max-width: 1099px) {
      #column-settings {
        display: contents;
      }
    }
  </style>
</head>
<body>

<div id="conn-error-banner" style="display:none;background:#c0392b;color:#fff;padding:10px 18px;font-size:14px;text-align:center;position:sticky;top:0;z-index:999;"></div>
<div id="file-ready-banner" style="display:none;background:#1a6e3c;color:#fff;padding:10px 18px;font-size:14px;text-align:center;position:sticky;top:0;z-index:998;align-items:center;justify-content:center;gap:12px;flex-wrap:wrap">
  <span>📄 <span id="file-ready-name"></span></span>
  <button id="file-ready-btn" onclick="startReadyFile()"
    style="padding:5px 16px;background:#fff;color:#1a6e3c;border:none;border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button>
  <button id="file-slots-btn" onclick="startReadyFileWithSlots()"
    style="padding:5px 16px;background:rgba(255,255,255,0.15);color:#fff;border:1px solid rgba(255,255,255,0.5);border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button>
  <button id="file-cancel-btn" onclick="cancelReadyFile()"
    style="padding:5px 16px;background:rgba(255,255,255,0.15);color:#fff;border:1px solid rgba(255,255,255,0.5);border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button>
</div>

<header>
  <div class="logo">⬡ KX-Bridge</div>
  <div style="flex:1"></div>
  <div id="printer-dropdown-wrap" style="display:none;position:relative">
    <button id="printer-dropdown-btn" onclick="togglePrinterDropdown()" style="background:var(--raised);border:1px solid var(--border);border-radius:6px;padding:4px 10px;color:var(--txt);cursor:pointer;font-size:13px;display:flex;align-items:center;gap:6px">
      <span id="h-pname">Anycubic Kobra X</span><span style="opacity:.5">▾</span>
    </button>
    <div id="printer-dropdown-menu" style="display:none;position:absolute;top:calc(100% + 4px);right:0;background:var(--card);border:1px solid var(--border);border-radius:8px;min-width:200px;z-index:200;box-shadow:0 4px 16px #0006;overflow:hidden">
    </div>
  </div>
  <div id="h-pname-single" class="hname">Anycubic Kobra X</div>
  <span id="h-version" style="font-size:11px;opacity:.5;margin-left:6px"></span>
  <div class="hbadge" id="h-badge"><span class="dot"></span><span id="h-state">Standby</span></div>
  <button class="theme-btn" onclick="toggleTheme()">☀ / ☾</button>
  <button class="theme-btn" onclick="showPanel('settings')" id="settings-btn" title="Einstellungen">⚙</button>
  <button class="conn-btn disconnected" id="conn-btn" onclick="toggleConnection()">⚡ Verbinden</button>
</header>

<!-- ═══ AMS SLOT EDIT DIALOG ═══ -->
<div class="modal-overlay" id="slot-edit-modal" onclick="if(event.target===this)closeSlotEdit()">
  <div class="modal-box" style="max-width:340px">
    <div style="display:flex;justify-content:space-between;align-items:center;margin-bottom:16px">
      <span class="modal-title" id="slot-edit-title"></span>
      <button onclick="closeSlotEdit()" style="background:none;border:none;color:var(--txt2);font-size:20px;cursor:pointer;line-height:1">✕</button>
    </div>
    <div style="display:flex;align-items:flex-start;gap:16px;margin-bottom:12px">
      <div id="slot-edit-preview" style="width:56px;height:56px;border-radius:50%;border:3px solid rgba(255,255,255,.2);flex-shrink:0;margin-top:4px"></div>
      <div style="flex:1;min-width:0">
        <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-color"></div>
        <div id="slot-pickr-anchor"></div>
        <input type="hidden" id="slot-edit-color">
      </div>
    </div>
    <div id="slot-color-swatches" style="display:flex;gap:5px;flex-wrap:wrap;margin-bottom:8px"></div>
    <div id="slot-copy-row" style="display:none;margin-bottom:16px">
      <select id="slot-copy-select"
        style="width:100%;padding:5px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px;box-sizing:border-box"
        onchange="slotCopyColor(this)">
        <option value="" id="lbl-slot-copy-from">Copy color from slot…</option>
      </select>
    </div>
    <div style="margin-bottom:20px">
      <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-material"></div>
      <div style="display:flex;flex-wrap:wrap;gap:6px" id="slot-mat-btns"></div>
      <input type="text" id="slot-edit-mat"
        oninput="highlightMatBtn(this.value)"
        style="margin-top:8px;width:100%;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px;box-sizing:border-box">
    </div>
    <div style="margin-bottom:20px">
      <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-profile"></div>
      <select id="slot-edit-profile"
        style="width:100%;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px;box-sizing:border-box">
        <option value="" id="slot-profile-default-opt"></option>
      </select>
      <div style="font-size:11px;color:var(--txt2);margin-top:4px" id="slot-profile-hint"></div>
      <a href="#" onclick="event.preventDefault();openProfileImport()"
        style="display:inline-block;margin-top:6px;font-size:11px;color:var(--accent);text-decoration:none"
        id="lbl-slot-profile-import">★ Eigene Profile importieren…</a>
    </div>
    <button class="btn" id="btn-slot-edit-feed" style="width:100%;margin-bottom:8px" onclick="slotEditFeed()"></button>
    <button class="modal-save" id="btn-slot-edit-save" onclick="saveSlotEdit()"></button>
  </div>
</div>

<!-- ═══ ORCA-PROFILE-IMPORT-DIALOG ═══ -->
<div class="modal-overlay" id="profile-import-modal" onclick="if(event.target===this)closeProfileImport()">
  <div class="modal-box" style="max-width:480px">
    <div style="display:flex;justify-content:space-between;align-items:center;margin-bottom:16px">
      <div style="font-size:16px;font-weight:600" id="profile-import-title">Eigene OrcaSlicer-Profile importieren</div>
      <button onclick="closeProfileImport()" style="background:none;border:none;color:var(--txt2);font-size:20px;cursor:pointer">×</button>
    </div>
    <div style="font-size:12px;color:var(--txt2);margin-bottom:12px;line-height:1.5" id="profile-import-help">
      Lade ein <b>ZIP</b> deines OrcaSlicer-Filament-Ordners oder einzelne <b>.json</b>-Files hoch.<br>
      In OrcaSlicer: <i>Help → Show Configuration Folder → user/&lt;id&gt;/filament/</i>
    </div>
    <div id="profile-import-drop" style="border:2px dashed var(--border);border-radius:8px;padding:24px;text-align:center;cursor:pointer;margin-bottom:12px"
      ondragover="event.preventDefault();this.style.borderColor='var(--accent)'"
      ondragleave="this.style.borderColor='var(--border)'"
      ondrop="event.preventDefault();this.style.borderColor='var(--border)';doProfileImportUpload(event.dataTransfer.files)"
      onclick="document.getElementById('profile-import-file').click()">
      <div style="font-size:32px;margin-bottom:8px">⬆</div>
      <div style="font-size:13px;color:var(--txt2)" id="profile-import-dropmsg">Hierher ziehen oder klicken</div>
      <input type="file" id="profile-import-file" accept=".zip,.json" multiple
        style="display:none" onchange="doProfileImportUpload(this.files);this.value=''">
    </div>
    <div id="profile-import-status" style="font-size:12px;margin-bottom:12px;min-height:18px"></div>
    <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="profile-import-list-label">Aktuell importiert</div>
    <div id="profile-import-list" style="max-height:240px;overflow-y:auto;font-size:12px"></div>
  </div>
</div>

<div class="layout">
  <nav class="sidebar">
    <button class="nav-btn active" onclick="showPanel('dashboard')" id="nb-dashboard">
      <span class="nav-icon">⊞</span><span class="nav-text">Dashboard</span></button>
    <button class="nav-btn" onclick="showPanel('printers');loadPrinterTab()" id="nb-printers">
      <span class="nav-icon">🖨</span><span class="nav-text">Drucker</span></button>
    <button class="nav-btn" onclick="showPanel('store');loadStore()" id="nb-store">
      <span class="nav-icon">🗂</span><span class="nav-text">Browser</span></button>
    <button class="nav-btn" onclick="showPanel('console');clearLogBadge()" id="nb-console">
      <span class="nav-icon">≡</span><span class="nav-text">Konsole</span><span id="log-badge" style="display:none;margin-left:4px;background:var(--err);color:#fff;border-radius:10px;font-size:10px;padding:1px 5px;font-weight:700"></span></button>
    <button class="nav-btn" onclick="showPanel('settings')" id="nb-settings">
      <span class="nav-icon">⚙</span><span class="nav-text" id="nav-settings">Einstellungen</span></button>
  </nav>

  <main>
    <!-- ═══ DASHBOARD ═══ -->
    <div class="panel active" id="panel-dashboard">
      <div class="grid">

        <!-- Fortschritt -->
        <div class="card" id="card-progress">
          <div class="card-title"><span>◉</span> <span id="d-card-progress">Fortschritt</span></div>
          <img id="d-thumbnail" src="" alt="" style="display:none;width:100%;max-height:160px;object-fit:contain;border-radius:8px;background:#111;margin-bottom:10px">
          <div class="pct-big"><span id="d-pct">0</span><small>%</small></div>
          <div style="display:flex;align-items:center;gap:10px;margin:8px 0">
            <div class="progress-bar" style="flex:1;margin:0"><div class="progress-fill" id="d-pbar" style="width:0%"></div></div>
            <div style="display:flex;flex-direction:column;gap:4px;flex-shrink:0">
              <div class="time-block" style="padding:6px 10px;min-width:72px;text-align:center">
                <div class="time-label" id="d-lbl-layers"></div>
                <div class="time-val" style="font-size:16px" id="d-layers">–</div>
              </div>
              <div class="time-block" style="padding:4px 10px;min-width:72px;text-align:center">
                <div class="time-label" id="d-lbl-zpos">Z</div>
                <div class="time-val" style="font-size:13px" id="d-zpos">–</div>
              </div>
            </div>
          </div>
          <div class="time-grid">
            <div class="time-block">
              <div class="time-label" id="d-lbl-elapsed"></div>
              <div class="time-val" id="d-elapsed">–</div>
            </div>
            <div class="time-block" id="d-slicer-row" style="display:none">
              <div class="time-label" id="d-slicer-label"></div>
              <div class="time-val" id="d-slicer-time">–</div>
            </div>
            <div class="time-block" style="color:var(--acc)">
              <div class="time-label" id="d-lbl-remain"></div>
              <div class="time-val" id="d-remain" style="color:var(--acc)">–</div>
            </div>
          </div>
          <div class="fname" id="d-fname" title="" style="margin-top:6px">–</div>
          <div class="ctrl-btns" id="d-ctrl-btns" style="margin-top:12px;display:none">
            <button class="btn btn-pause btn-sm" id="d-btn-pause" onclick="togglePauseResume()">⏸ Pause</button>
            <button class="btn btn-skip btn-sm" id="d-btn-skip" onclick="openSkipDialog()" style="display:none">✂ <span id="d-btn-skip-label">Objekte</span></button>
            <button class="btn btn-cancel btn-sm" id="d-btn-cancel" onclick="confirmCancel()">✕ Stopp</button>
          </div>
          <div class="ctrl-btns" id="d-idle-btns" style="margin-top:12px;display:none">
            <button class="btn btn-accent btn-sm" id="d-idle-print" onclick="startIdleFile()">▶ <span id="d-idle-print-lbl">Drucken</span></button>
            <button class="btn btn-sm" id="d-idle-slots" onclick="startIdleFileWithSlots()" style="background:var(--raised);color:var(--txt)">⚙ <span id="d-idle-slots-lbl">Slots zuordnen</span></button>
            <button class="btn btn-cancel btn-sm" id="d-idle-clear" onclick="clearIdleFile()">✕ <span id="d-idle-clear-lbl">Leeren</span></button>
          </div>
        </div>

        <!-- Kamera -->
        <div class="card" id="card-camera">
          <div style="display:flex;align-items:center;justify-content:space-between;margin-bottom:10px">
            <div class="card-title" style="margin-bottom:0"><span>📷</span> <span id="d-card-cam">Kamera</span></div>
            <div style="display:flex;align-items:center;gap:10px">
              <span id="d-lbl-light" style="font-size:12px;color:var(--txt2)">💡 Licht</span>
              <label class="toggle">
                <input type="checkbox" id="d-light-toggle" onchange="setLight()">
                <span class="toggle-track"></span>
                <span class="toggle-thumb"></span>
              </label>
            </div>
          </div>
          <div class="cam-wrap" id="cam-wrap">
            <div class="cam-placeholder" id="cam-placeholder"><span id="cam-placeholder-txt">📷 Kamera nicht gestartet</span></div>
            <div class="cam-spinner" id="cam-spinner"></div>
            <img id="cam-img" style="display:none;width:100%;height:auto" alt="Kamera">
            <div class="cam-overlay" id="cam-overlay" style="display:none">
              <div style="font-size:12px;color:#fff" id="cam-fname"></div>
            </div>
            <button class="cam-toggle" onclick="toggleCam()" id="cam-toggle-btn">▶ Kamera</button>
            <button class="cam-toggle" onclick="resetCamera()" id="cam-reset-btn" style="display:none;margin-left:4px" title="Kamera-Stream neu verbinden (nach 429-Sperre)">↺</button>
          </div>
        </div>

        <!-- Consolidated Column: Print Settings -->
        <div id="column-settings">

          <!-- Temperatursteuerung + Verlauf -->
          <div class="card" id="card-temps">
            <div class="card-title"><span>⊙</span> <span id="d-card-temps">Temperaturen</span></div>
            <div class="temp-card-inner">
              <div class="temp-block">
                <div class="temp-label" id="d-lbl-nozzle">Nozzle</div>
                <div class="temp-row">
                  <div class="temp-val" id="d-nt">–</div>
                  <div class="temp-unit">°C</div>
                </div>
                <div class="temp-target">→ <span id="d-nt-t">0</span>°C</div>
                <div class="progress-bar" style="margin:8px 0 0">
                  <div class="progress-fill" id="d-ntbar" style="width:0%;background:linear-gradient(90deg,var(--accent2),#ffb020)"></div>
                </div>
                <div class="temp-edit" style="margin-top:10px">
                  <input type="number" class="temp-input" id="p-nozzle-inp" placeholder="Ziel" min="0" max="300" style="flex:1">
                  <button class="btn btn-sm btn-accent" onclick="setNozzle()"><span class="lbl-set">Set</span></button>
                  <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="document.getElementById('p-nozzle-inp').value=0;setNozzle()"><span class="lbl-off">Aus</span></button>
                </div>
              </div>
              <div class="temp-block">
                <div class="temp-label" id="d-lbl-bed">Bett</div>
                <div class="temp-row">
                  <div class="temp-val" id="d-bt">–</div>
                  <div class="temp-unit">°C</div>
                </div>
                <div class="temp-target">→ <span id="d-bt-t">0</span>°C</div>
                <div class="progress-bar" style="margin:8px 0 0">
                  <div class="progress-fill" id="d-btbar" style="width:0%;background:linear-gradient(90deg,#ff6b35,var(--warn))"></div>
                </div>
                <div class="temp-edit" style="margin-top:10px">
                  <input type="number" class="temp-input" id="p-bed-inp" placeholder="Ziel" min="0" max="120" style="flex:1">
                  <button class="btn btn-sm btn-accent" onclick="setBed()"><span class="lbl-set">Set</span></button>
                  <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="document.getElementById('p-bed-inp').value=0;setBed()"><span class="lbl-off">Aus</span></button>
                </div>
              </div>
            </div>
            <div style="margin-top:14px">
              <div style="font-size:10px;color:var(--txt2);margin-bottom:4px" id="d-chart-label">Verlauf (letzte 60 Messungen)</div>
              <canvas id="d-chart" width="800" height="120" style="width:100%;height:120px;background:var(--raised);border-radius:8px"></canvas>
            </div>
          </div>

          <!-- Print Speed -->
          <div class="card" id="card-speed">
            <div class="card-title"><span>🏎</span> <span id="d-card-speed">Druckgeschwindigkeit</span></div>
            <div style="display:flex;gap:8px;margin-top:4px">
              <button class="spd-btn" id="d-spd-1" onclick="setSpeed(1)">
                <span class="spd-icon">🐢</span>
                <span id="d-spd-lbl-1">Leise</span>
              </button>
              <button class="spd-btn spd-active" id="d-spd-2" onclick="setSpeed(2)">
                <span class="spd-icon">⚡</span>
                <span id="d-spd-lbl-2">Normal</span>
              </button>
              <button class="spd-btn" id="d-spd-3" onclick="setSpeed(3)">
                <span class="spd-icon">🚀</span>
                <span id="d-spd-lbl-3">Sport</span>
              </button>
            </div>
            <div class="spd-bar" style="margin-top:12px">
              <div class="spd-bar-fill" id="d-spd-bar" style="width:50%"></div>
            </div>
          </div>

          <!-- Lüfter -->
          <div class="card" id="card-fan">
            <div class="card-title"><span>🌀</span> <span id="d-card-lightfan">Lüfter</span></div>
            <div class="slider-row">
              <input type="range" class="slider" min="0" max="100" value="0" id="d-fan" oninput="document.getElementById('d-fan-val').textContent=this.value" onchange="setFan()">
              <span class="slider-val" id="d-fan-val">0</span>
            </div>
            <div style="margin-top:12px;display:flex;gap:8px;flex-wrap:wrap">
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(0)">Aus</button>
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(25)">25%</button>
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(50)">50%</button>
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(75)">75%</button>
              <button class="btn btn-sm btn-accent" onclick="quickFan(100)">100%</button>
            </div>
          </div>

          <!-- Dryer Dry-Wrap integration -->
          <div id="d-ace-dry-wrap" style="display:none">
            <div id="d-ace-dry-grid" style="display:contents"></div>
          </div>
        </div>

        <!-- Achsensteuerung -->
        <div class="card" id="card-motion">
          <div class="card-title"><span>✛</span> <span id="ptitle-motion-xy">Achsensteuerung</span></div>
          <div style="display:flex;gap:16px;align-items:flex-start;flex-wrap:wrap">
            <div style="display:flex;flex-direction:column;align-items:center;gap:6px">
              <div class="joypad">
                <div></div>
                <button class="joy" onclick="move(1,1,getStep())" title="Y+">▲</button>
                <div></div>
                <button class="joy" onclick="move(0,-1,getStep())" title="X−">◀</button>
                <div></div>
                <button class="joy" onclick="move(0,1,getStep())" title="X+">▶</button>
                <div></div>
                <button class="joy" onclick="move(1,-1,getStep())" title="Y−">▼</button>
                <div></div>
              </div>
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt);width:100%" onclick="homeXY()"><span class="lbl-home-xy">Home XY</span></button>
            </div>
            <div style="display:flex;flex-direction:column;align-items:center;gap:6px">
              <div class="joypad" style="grid-template-columns:52px;grid-template-rows:repeat(2,52px)">
                <button class="joy" onclick="move(2,1,getStep())" title="Z+">▲</button>
                <button class="joy" onclick="move(2,-1,getStep())" title="Z−">▼</button>
              </div>
              <button class="btn btn-sm" style="background:var(--raised);color:var(--txt);width:100%" onclick="homeZ()"><span class="lbl-home-z">Home Z</span></button>
            </div>
          </div>
          <div style="display:flex;align-items:center;gap:6px;margin-top:10px;flex-wrap:wrap">
            <div class="step-btns" style="margin-top:0">
              <button class="step-btn" onclick="setStep(this,0.1)">0.1</button>
              <button class="step-btn active" onclick="setStep(this,1)">1</button>
              <button class="step-btn" onclick="setStep(this,5)">5</button>
              <button class="step-btn" onclick="setStep(this,10)">10</button>
            </div>
            <input id="step-custom" type="number" min="0.1" max="260" step="0.1"
              placeholder="mm"
              style="width:60px;padding:4px 6px;font-size:12px;border-radius:6px;border:1px solid var(--border);background:var(--raised);color:var(--txt);text-align:center"
              oninput="setStepCustom(this)">
          </div>
          <div style="display:flex;justify-content:center;gap:8px;margin-top:10px">
            <button class="btn btn-sm btn-accent" onclick="homeAll()"><span class="lbl-home-all">Home All</span></button>
            <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="disableMotors()"><span class="lbl-disable-motors">Motors Off</span></button>
          </div>
        </div>

        <!-- AMS -->
        <div class="card" id="d-ams-card">
          <div class="card-title"><span>◫</span> <span id="d-card-ams">Filament</span></div>
          <div class="ams-slots" id="ams-slots">
            <div style="grid-column:1/-1;text-align:center;color:var(--txt2);padding:20px" id="ams-no-data">Keine AMS-Daten empfangen</div>
          </div>
        </div>

      </div>
    </div>

    <!-- ═══ DRUCKER ═══ -->
    <div class="panel" id="panel-printers">
      <div class="card">
        <div class="card-title" style="display:flex;justify-content:space-between;align-items:center;margin-bottom:12px">
          <span id="printers-panel-title">🖨 Drucker</span>
          <div style="display:flex;gap:8px">
            <button onclick="openAddPrinterDialog()" style="font-size:12px;padding:4px 12px;background:var(--accent);border:none;border-radius:6px;color:#fff;cursor:pointer;font-weight:600">+ <span id="add-printer-btn-label">Drucker hinzufügen</span></button>
            <button onclick="loadPrinterTab()" style="font-size:12px;padding:4px 12px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt2);cursor:pointer">↻</button>
          </div>
        </div>
        <div id="printers-grid" style="display:grid;grid-template-columns:repeat(auto-fill,minmax(260px,1fr));gap:14px"></div>
      </div>
    </div>

    <!-- ═══ GCODE STORE ═══ -->
    <div class="panel" id="panel-store">
      <div class="card">
        <div class="card-title" style="display:flex;justify-content:space-between;align-items:center;margin-bottom:10px">
          <span id="store-panel-title">🗂 Datei-Browser</span>
          <button id="store-refresh-btn" onclick="loadStore()" style="font-size:12px;padding:4px 12px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt2);cursor:pointer">↻ Aktualisieren</button>
        </div>
        <div style="display:flex;gap:8px;margin-bottom:12px;flex-wrap:wrap">
          <input id="store-search" type="text" placeholder="🔍 Suche…" oninput="renderStore()"
            style="flex:1;min-width:140px;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px">
          <select id="store-filter" onchange="renderStore()"
            style="padding:6px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px">
            <option value="all" id="sf-all">Alle</option>
            <option value="completed" id="sf-ok">✓ Erfolgreich</option>
            <option value="failed" id="sf-err">✗ Fehler</option>
            <option value="never" id="sf-new">Neu</option>
          </select>
          <select id="store-sort" onchange="renderStore()"
            style="padding:6px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px">
            <option value="date_desc" id="ss-date">↓ Datum</option>
            <option value="name_asc" id="ss-name">A–Z Name</option>
            <option value="duration_asc" id="ss-dur">⏱ Druckzeit</option>
          </select>
        </div>
        <div id="store-upload-zone" onclick="document.getElementById('store-upload-input').click()"
          ondragover="event.preventDefault();this.classList.add('drag-over')"
          ondragleave="this.classList.remove('drag-over')"
          ondrop="event.preventDefault();this.classList.remove('drag-over');uploadGcode(event.dataTransfer.files[0])">
          <input type="file" id="store-upload-input" accept=".gcode,.bgcode"
            style="display:none" onchange="uploadGcode(this.files[0]);this.value=''">
          <span id="store-upload-icon">⬆</span>
          <span id="store-upload-label"><span id="store-upload-label-prefix">GCode hierher ziehen oder </span><u id="store-upload-label-browse">durchsuchen</u></span>
          <span id="store-upload-status" style="display:none"></span>
        </div>
        <div id="store-empty" style="display:none;color:var(--txt2);text-align:center;padding:40px 0;font-size:14px"></div>
        <div id="store-grid" style="display:grid;grid-template-columns:repeat(auto-fill,minmax(200px,1fr));gap:14px"></div>
      </div>
    </div>

    <!-- ═══ CONSOLE ═══ -->
    <div class="panel" id="panel-console">
      <div class="card">
        <div class="card-title" style="display:flex;justify-content:space-between;align-items:center">
          <span><span>≡</span> <span id="ptitle-console">Ereignis-Log</span></span>
          <a id="btn-log-dl" href="/api/log/download" download
             style="font-size:12px;padding:4px 10px;background:var(--raised);border-radius:6px;color:var(--txt2);text-decoration:none">⬇ Download</a>
        </div>
        <div style="display:flex;gap:6px;margin-bottom:6px;flex-wrap:wrap;align-items:center">
          <input id="log-filter" type="text" placeholder="Filter…"
            oninput="renderLog()"
            style="flex:1;min-width:120px;padding:5px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px;font-family:var(--mono)">
          <button id="btn-autoscroll" onclick="toggleAutoScroll()"
            style="font-size:12px;padding:5px 10px;border-radius:6px;border:1px solid var(--border);background:var(--accent);color:#fff;cursor:pointer;white-space:nowrap">⬇ Auto</button>
          <button onclick="consoleLogs=[];renderLog()"
            style="font-size:12px;padding:5px 10px;border-radius:6px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">✕ Clear</button>
        </div>
        <div style="display:flex;gap:5px;margin-bottom:8px;flex-wrap:wrap">
          <span style="font-size:11px;color:var(--txt2);align-self:center;margin-right:2px">Dir:</span>
          <button class="log-dir-btn active" id="logdir-all"  onclick="setLogDir('all')"  style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer"></button>
          <button class="log-dir-btn"        id="logdir-rx"   onclick="setLogDir('rx')"   style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">RX</button>
          <button class="log-dir-btn"        id="logdir-tx"   onclick="setLogDir('tx')"   style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">TX</button>
          <span style="font-size:11px;color:var(--txt2);align-self:center;margin-left:6px;margin-right:2px" id="log-lbl-level">Level:</span>
          <button class="log-lvl-btn active" id="loglvl-all"  onclick="setLogLevel('all')"  style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer"></button>
          <button class="log-lvl-btn"        id="loglvl-err"  onclick="setLogLevel('err')"  style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">⛔ Errors</button>
          <button class="log-lvl-btn"        id="loglvl-warn" onclick="setLogLevel('warn')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">⚠ Warn</button>
          <span style="font-size:11px;color:var(--txt2);align-self:center;margin-left:6px;margin-right:2px">Topic:</span>
          <button class="log-topic-btn" data-topic="multiColorBox" onclick="setLogTopic('multiColorBox')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">AMS</button>
          <button class="log-topic-btn" data-topic="print"         onclick="setLogTopic('print')"         style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">print</button>
          <button class="log-topic-btn" data-topic="info"          onclick="setLogTopic('info')"          style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">info</button>
          <button class="log-topic-btn" data-topic="status"        onclick="setLogTopic('status')"        style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">status</button>
        </div>
        <div class="console" id="console-log" style="height:calc(100vh - 260px);min-height:160px" onscroll="onLogScroll()"></div>
      </div>
    </div>

    <!-- ═══ EINSTELLUNGEN ═══ -->
    <div class="panel" id="panel-settings">
      <div class="settings-wrap">
        <div class="settings-cats">
          <button class="set-cat active" id="setcat-connection" onclick="showSettingsCat('connection')"><span>🔌</span> <span id="setcat-lbl-connection">Verbindung</span></button>
          <button class="set-cat" id="setcat-printer" onclick="showSettingsCat('printer')"><span>🖨</span> <span id="setcat-lbl-printer">Drucker</span></button>
          <button class="set-cat" id="setcat-display" onclick="showSettingsCat('display')"><span>🎨</span> <span id="setcat-lbl-display">Darstellung</span></button>
          <button class="set-cat" id="setcat-filament" onclick="showSettingsCat('filament')"><span>🧵</span> <span id="setcat-lbl-filament">Filament</span></button>
          <button class="set-cat" id="setcat-integrations" onclick="showSettingsCat('integrations')"><span>⚡</span> <span id="setcat-lbl-integrations">Integrationen</span></button>
          <button class="set-cat" id="setcat-system" onclick="showSettingsCat('system')"><span>⚙</span> <span id="setcat-lbl-system">System</span></button>
        </div>

        <div class="settings-content">
          <!-- Verbindung -->
          <div class="set-group active" id="setgrp-connection">
            <div class="card">
              <div class="card-title"><span>🔌</span> <span id="modal-sec-connection">Verbindung</span></div>
              <div class="modal-field" style="margin-bottom:12px">
                <label id="lbl-printer-name" style="font-weight:600">Drucker-Name</label>
                <input type="text" id="s-printer-name" placeholder="z.B. Kobra X Links">
              </div>
              <div class="modal-field">
                <label id="lbl-printer-ip">Drucker-IP</label>
                <input type="text" id="s-printer-ip" placeholder="192.168.x.x">
                <small id="lbl-ip-hint" style="color:#f80;display:none"></small>
              </div>
              <div class="modal-field">
                <label id="lbl-mqtt-port">MQTT-Port</label>
                <input type="number" id="s-mqtt-port" placeholder="9883">
              </div>
              <div class="modal-field">
                <label id="lbl-username">MQTT-Benutzername</label>
                <input type="text" id="s-username" placeholder="userXXXXXXXX" autocomplete="new-password">
              </div>
              <div class="modal-field">
                <label id="lbl-password">MQTT-Passwort</label>
                <input type="password" id="s-password" autocomplete="new-password">
              </div>
              <div class="modal-field">
                <label id="lbl-device-id">Device-ID</label>
                <input type="text" id="s-device-id" placeholder="32 Hex-Zeichen">
              </div>
              <div class="modal-field">
                <label id="lbl-mode-id">Mode-ID</label>
                <input type="text" id="s-mode-id" placeholder="20030">
              </div>
            </div>
          </div>

          <!-- Drucker -->
          <div class="set-group" id="setgrp-printer">
            <div class="card">
              <div class="card-title"><span>🖨</span> <span id="modal-sec-print">Druckeinstellungen</span></div>
              <div class="modal-field">
                <label id="lbl-default-slot">Standard-Slot (Einfarbdruck)</label>
                <select id="s-default-slot">
                  <option value="auto" id="opt-slot-auto">Auto (alle belegten Slots)</option>
                  <option value="0" id="opt-slot-0">Slot 1</option>
                  <option value="1" id="opt-slot-1">Slot 2</option>
                  <option value="2" id="opt-slot-2">Slot 3</option>
                  <option value="3" id="opt-slot-3">Slot 4</option>
                </select>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <input type="checkbox" id="s-auto-leveling" style="width:auto;margin:0">
                <label id="lbl-auto-leveling" style="margin:0;cursor:pointer" for="s-auto-leveling">Auto-Leveling vor Druck</label>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <input type="checkbox" id="s-vibration-compensation" style="width:auto;margin:0">
                <label id="lbl-vibration-compensation" style="margin:0;cursor:pointer" for="s-vibration-compensation">Resonance compensation before print</label>
              </div>
              <div class="modal-field">
                <label id="lbl-file-ready-mode">Nach Upload: Druckstart-Verhalten</label>
                <select id="s-file-ready-mode">
                  <option value="1" id="opt-file-ready-dialog">Print-Dialog</option>
                  <option value="0" id="opt-file-ready-banner">Print-Leiste</option>
                </select>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <input type="checkbox" id="s-camera-on-print" style="width:auto;margin:0">
                <label id="lbl-camera-on-print" style="margin:0;cursor:pointer" for="s-camera-on-print">Kamera bei Druckstart einschalten</label>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <input type="checkbox" id="s-web-upload-warning" style="width:auto;margin:0">
                <label id="lbl-web-upload-warning" style="margin:0;cursor:pointer" for="s-web-upload-warning">Warnung bei Web-Upload-Druck anzeigen</label>
              </div>
            </div>
          </div>

          <!-- Darstellung -->
          <div class="set-group" id="setgrp-display">
            <div class="card">
              <div class="card-title"><span>🎨</span> <span id="setcat-lbl-display2">Darstellung</span></div>
              <div class="modal-field">
                <label id="lbl-set-lang">Sprache</label>
                <select id="s-lang-select" onchange="setLanguage(this.value)">
                  <option value="de">Deutsch</option>
                  <option value="en">English</option>
                  <option value="es">Espanol</option>
                  <option value="fr">Français</option>
                  <option value="it">Italiano</option>
                  <option value="zh-cn">中文(简体)</option>
                </select>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="toggleTheme()"><span id="lbl-set-theme">Hell / Dunkel umschalten</span></button>
              </div>
              <div class="modal-field">
                <label id="lbl-poll-interval">Poll-Intervall (Sekunden)</label>
                <input type="number" id="s-poll-interval" min="1" max="60" step="1" placeholder="3" oninput="onPollIntervalInput()">
                <small style="color:var(--txt2)" id="lbl-poll-hint">Wie oft die Bridge den Drucker-Status abfragt</small>
              </div>
              <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px">
                <input type="checkbox" id="s-verbose-http-log" style="width:auto;margin:0">
                <label id="lbl-verbose-http-log" style="margin:0;cursor:pointer" for="s-verbose-http-log">Log every HTTP request (verbose)</label>
              </div>
            </div>
          </div>

          <!-- Filament -->
          <div class="set-group" id="setgrp-filament">
            <div class="card">
              <div class="card-title"><span>🧵</span> <span id="modal-sec-orca-profiles">OrcaSlicer-Profile</span></div>
              <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="orca-profiles-hint">
                Eigene Profile aus OrcaSlicer importieren (User-Dir öffnen via Help → Show Configuration Folder)
              </div>
              <div id="orca-profiles-list" style="margin-bottom:8px;font-size:12px;color:var(--txt2)"></div>
              <button class="btn btn-sm" id="btn-orca-profiles-import" onclick="openProfileImport()"
                style="background:var(--raised);color:var(--txt)">
                ⬆ <span id="lbl-orca-profiles-import">Profile importieren</span>
              </button>
            </div>
            <div class="card">
              <div class="card-title"><span>🎯</span> <span id="lbl-filament-mapping">Filament-Profil-Mapping (pro Slot)</span></div>
              <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="filament-mapping-hint">
                Festes Orca-Profil pro AMS-Slot. Beim Slicer-Sync sendet die Bridge dieses Profil statt „Generic".
              </div>
              <div id="filament-mapping-list"></div>
              <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:8px" onclick="saveFilamentMapping()"><span id="lbl-filament-mapping-save">Mapping speichern</span></button>
            </div>
            <div class="card">
              <div class="card-title"><span>👁</span> <span id="lbl-visible-vendors">Sichtbare Hersteller (Profil-Dropdown)</span></div>
              <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="visible-vendors-hint">
                Nur diese Hersteller erscheinen im Slot-Profil-Dropdown. Nichts ausgewählt = alle anzeigen. „Generic" und eigene Profile sind immer sichtbar.
              </div>
              <input type="text" id="vendor-filter-search" placeholder="Hersteller suchen…" oninput="renderVendorChecklist()"
                style="width:100%;padding:6px 10px;margin-bottom:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px">
              <div id="visible-vendors-list" style="max-height:260px;overflow-y:auto;border:1px solid var(--border);border-radius:6px;padding:8px"></div>
              <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:8px" onclick="saveVisibleVendors()"><span id="lbl-visible-vendors-save">Auswahl speichern</span></button>
            </div>
            <div class="card" id="spoolman-slot-card" style="display:none">
              <div class="card-title"><span>🧵</span> <span id="lbl-spoolman-slot-assign">Spoolman — Slot-Zuordnung</span></div>
              <div style="font-size:11px;color:var(--txt2);margin-bottom:10px" id="lbl-spoolman-slot-hint">Spoolman-Spool pro AMS-Slot zuweisen. Der Verbrauch wird beim Druck automatisch gemeldet.</div>
              <div id="spoolman-slot-rows" style="display:flex;flex-direction:column;gap:8px"></div>
              <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:10px" onclick="saveSpoolmanSlots()"><span id="lbl-spoolman-slot-save">Zuordnung speichern</span></button>
            </div>
          </div>

          <!-- Integrationen -->
          <div class="set-group" id="setgrp-integrations">
            <!-- Spoolman -->
            <div class="card">
              <div class="card-title"><span>🧵</span> <span id="modal-sec-spoolman">Spoolman</span></div>
              <div class="set-row">
                <label id="lbl-spoolman-url">Server-URL</label>
                <input type="text" id="s-spoolman-url" placeholder="http://spoolman:7912" style="width:200px">
              </div>
              <div class="set-row">
                <label id="lbl-spoolman-sync-rate">Sync-Rate (s, 0=Druckende)</label>
                <input type="number" id="s-spoolman-sync-rate" min="0" max="3600" value="30" style="width:80px">
              </div>
              <div id="spoolman-status-row" style="margin-top:6px;font-size:12px;color:var(--txt2)">
                <span id="spoolman-status-dot">●</span> <span id="spoolman-status-lbl"></span>
              </div>
            </div>
            <!-- Obico -->
            <div class="card" style="margin-top:10px">
              <div class="card-title"><span>🕵</span> <span id="modal-sec-obico">Obico</span></div>
              <div style="font-size:12px;color:var(--txt2);line-height:1.6" id="obico-info-box">
                Obico wird über den <code>moonraker-obico</code>-Container konfiguriert.<br>
                Config-Datei: <code id="obico-cfg-path">/mnt/dockerdata/KobraXStack/moonraker-obico/moonraker-obico.cfg</code>
              </div>
            </div>
          </div>

          <!-- System -->
          <div class="set-group" id="setgrp-system">
            <div class="card">
              <div class="card-title"><span>⚙</span> <span id="modal-sec-version">Version</span></div>
              <div class="update-row">
                <span id="s-version-label" style="font-size:13px;color:var(--txt)">–</span>
                <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="checkUpdate()" id="btn-update-check">🔄 <span id="lbl-update-check">Auf Updates prüfen</span></button>
              </div>
              <div class="update-status" id="update-status" style="margin-top:6px"></div>
              <button class="btn btn-sm btn-accent" id="btn-update-apply" style="display:none;margin-top:8px" onclick="applyUpdate()">
                <span id="lbl-update-apply">Jetzt installieren</span>
              </button>
              <div id="update-changelog" style="display:none;margin-top:10px;background:var(--raised);border-radius:6px;padding:10px;font-size:11px;font-family:var(--mono);color:var(--txt2);white-space:pre-wrap;max-height:180px;overflow-y:auto;line-height:1.6"></div>
            </div>
          </div>

          <button class="modal-save" onclick="saveSettings()" id="btn-save-settings" style="margin-top:14px">Speichern &amp; Neustart</button>
        </div>
      </div>
    </div>
  </main>
</div>

<nav class="bottom-nav">
  <button class="bnav-btn active" onclick="showPanel('dashboard')" id="bnb-dashboard"><span class="bnav-icon">⊞</span>Dashboard</button>
  <button class="bnav-btn" onclick="showPanel('printers');loadPrinterTab()" id="bnb-printers"><span class="bnav-icon">🖨</span>Drucker</button>
  <button class="bnav-btn" onclick="showPanel('store');loadStore()" id="bnb-store"><span class="bnav-icon">🗂</span>Browser</button>
  <button class="bnav-btn" onclick="showPanel('console');clearLogBadge()" id="bnb-console"><span class="bnav-icon">≡</span>Log<span id="log-badge-bot" style="display:none;margin-left:3px;background:var(--err);color:#fff;border-radius:10px;font-size:10px;padding:1px 4px;font-weight:700"></span></button>
  <button class="bnav-btn" onclick="showPanel('settings')" id="bnb-settings"><span class="bnav-icon">⚙</span>Setup</button>
</nav>

<!-- Web-Upload-Verify-Dialog -->
<div class="modal-overlay" id="store-web-verify-dialog" onclick="if(event.target===this)closeStoreWebVerifyDialog()">
  <div class="modal-box" style="max-width:420px;width:100%">
    <div class="modal-header" style="margin-bottom:14px">
      <span class="modal-title" id="store-web-verify-title">Datei verifizieren</span>
      <button onclick="closeStoreWebVerifyDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button>
    </div>
    <p id="store-web-verify-msg" style="font-size:13px;color:var(--txt);margin-bottom:12px">Bitte bestätige, dass diese Datei für den Anycubic Kobra X erstellt wurde.</p>
    <div id="store-web-verify-status" style="font-size:12px;color:var(--txt2);min-height:16px;margin-bottom:8px"></div>
    <div style="display:flex;gap:8px;justify-content:flex-end">
      <button id="store-web-verify-abort" onclick="closeStoreWebVerifyDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button>
      <button id="store-web-verify-confirm" onclick="confirmStoreWebVerify()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Bestätigen</button>
    </div>
  </div>
</div>

<!-- Filament-Slot-Dialog -->
<div class="modal-overlay" id="filament-dialog" onclick="if(event.target===this)closeFilamentDialog()">
  <div class="modal-box" style="max-width:380px;width:100%">
    <div class="modal-header" style="margin-bottom:14px">
      <span class="modal-title" id="fd-title" style="font-size:14px;word-break:break-all"></span>
      <button onclick="closeFilamentDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button>
    </div>
    <p id="fd-slots-hint" style="font-size:12px;color:var(--txt2);margin-bottom:10px">GCode-Kanal → AMS-Slot zuweisen:</p>
    <div id="fd-mismatch-warn" style="display:none;margin-bottom:10px;padding:8px 10px;background:rgba(255,160,0,.12);border:1px solid rgba(255,160,0,.4);border-radius:8px;font-size:11px;color:#ffa000"></div>
    <div id="fd-slots" style="display:flex;flex-direction:column;gap:8px;margin-bottom:16px"></div>
    <div id="fd-objects-section" style="display:none;margin-bottom:16px">
      <button type="button" id="fd-objects-toggle" onclick="toggleFdObjects()"
        style="display:flex;align-items:center;gap:8px;width:100%;padding:8px 10px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer;font-size:12px;text-align:left">
        <span id="fd-objects-arrow" style="font-size:10px;transition:transform .15s">▶</span>
        <span>✂ <span id="fd-objects-toggle-lbl">Objekte überspringen</span></span>
        <span id="fd-objects-count" style="margin-left:auto;color:var(--txt2);font-weight:600"></span>
      </button>
      <div id="fd-objects-body" style="display:none;margin-top:8px">
        <div id="fd-objects-svg" style="display:none;background:var(--raised);border:1px solid var(--border);border-radius:8px;padding:6px;margin-bottom:8px;text-align:center"></div>
        <div id="fd-objects" style="display:flex;flex-direction:column;gap:6px;max-height:140px;overflow-y:auto"></div>
      </div>
    </div>
    <div style="margin-bottom:14px;padding:10px 12px;background:var(--raised);border-radius:8px;border:1px solid var(--border)">
      <div style="font-size:11px;font-weight:600;color:var(--txt2);margin-bottom:8px;text-transform:uppercase;letter-spacing:.05em" id="fd-options-title">Druckoptionen</div>
      <div style="display:flex;align-items:center;gap:8px">
        <input type="checkbox" id="fd-auto-leveling" style="width:auto;margin:0">
        <label for="fd-auto-leveling" style="margin:0;cursor:pointer;font-size:13px" id="fd-lbl-auto-leveling">Auto-Leveling</label>
      </div>
    </div>
    <div id="fd-spoolman-section" style="display:none;margin-bottom:16px;border-top:1px solid var(--border);padding-top:12px">
      <p style="font-size:12px;color:var(--txt2);margin-bottom:8px;display:flex;align-items:center;gap:6px">
        <span id="fd-spoolman-lbl">🧵 Spoolman</span>
        <span id="fd-spoolman-loading" style="display:none;font-size:10px">…</span>
      </p>
      <div id="fd-spoolman-rows" style="display:flex;flex-direction:column;gap:6px"></div>
    </div>
    <div style="display:flex;gap:8px;justify-content:flex-end">
      <button id="fd-cancel" onclick="closeFilamentDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button>
      <button id="fd-print" onclick="confirmFilamentPrint()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">▶ Drucken</button>
    </div>
  </div>
</div>

<!-- Drucker-hinzufügen-Dialog -->
<div class="modal-overlay" id="add-printer-dialog" onclick="if(event.target===this)closeAddPrinterDialog()">
  <div class="modal-box" style="max-width:380px;width:100%">
    <div class="modal-header" style="margin-bottom:14px">
      <span class="modal-title" id="apd-title">Drucker hinzufügen</span>
      <button onclick="closeAddPrinterDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button>
    </div>
    <label id="apd-lbl-ip" style="display:block;font-size:12px;color:var(--txt2);margin-bottom:4px">Drucker-IP</label>
    <input type="text" id="apd-ip" placeholder="192.168.1.100" style="width:100%;box-sizing:border-box;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);margin-bottom:10px">
    <label id="apd-lbl-name" style="display:block;font-size:12px;color:var(--txt2);margin-bottom:4px">Name (optional)</label>
    <input type="text" id="apd-name" placeholder="z.B. Kobra X Wohnzimmer" style="width:100%;box-sizing:border-box;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);margin-bottom:6px">
    <div id="apd-status" style="font-size:12px;margin:8px 0;min-height:16px;color:var(--txt2)"></div>
    <div style="display:flex;gap:8px;justify-content:flex-end">
      <button id="apd-cancel" onclick="closeAddPrinterDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button>
      <button id="apd-confirm" onclick="confirmAddPrinter()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Hinzufügen</button>
    </div>
  </div>
</div>

<!-- Mid-Print Skip-Dialog -->
<div class="modal-overlay" id="skip-dialog" onclick="if(event.target===this)closeSkipDialog()">
  <div class="modal-box" style="max-width:420px;width:100%">
    <div class="modal-header" style="margin-bottom:14px">
      <span class="modal-title" id="skip-title">✂ Objekte überspringen</span>
      <button onclick="closeSkipDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button>
    </div>
    <p id="skip-hint" style="font-size:12px;color:var(--txt2);margin-bottom:10px">Objekte abwählen, die nicht weiter gedruckt werden sollen:</p>
    <div id="skip-svg" style="display:none;background:var(--raised);border:1px solid var(--border);border-radius:8px;padding:6px;margin-bottom:10px;text-align:center"></div>
    <div id="skip-list" style="display:flex;flex-direction:column;gap:6px;max-height:200px;overflow-y:auto;margin-bottom:12px"></div>
    <div id="skip-status" style="font-size:12px;color:var(--txt2);min-height:16px;margin-bottom:8px"></div>
    <div style="display:flex;gap:8px;justify-content:flex-end">
      <button onclick="closeSkipDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button>
      <button id="skip-confirm" onclick="confirmSkip()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Überspringen</button>
    </div>
  </div>
</div>

<!-- ACE Dryer Temp/Time Settings Dialog -->
<div class="modal-overlay" id="ace-dry-dialog" onclick="if(event.target===this)closeAceDryDialog()">
  <div class="modal-box" style="max-width:560px;width:100%">
    <div class="modal-header" style="margin-bottom:10px">
      <span class="modal-title" id="ace-dry-dialog-title">Dryer Temp/Time Settings</span>
      <button onclick="closeAceDryDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button>
    </div>
    <div style="display:flex;align-items:center;gap:12px;margin-bottom:8px">
      <label id="ace-dry-dialog-temp-label" style="min-width:190px;font-size:12px;color:var(--txt)">Temperature (30-80°C)</label>
      <input id="ace-dry-dialog-temp" type="number" min="30" max="80" step="1"
        oninput="aceDryDialogInputsChanged()"
        style="width:130px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center" value="45">
    </div>
    <div style="display:flex;align-items:center;gap:12px;margin-bottom:16px">
      <label id="ace-dry-dialog-time-label" style="min-width:190px;font-size:12px;color:var(--txt)">Rem. Time (h:m:s)</label>
      <div style="display:flex;align-items:center;gap:8px">
        <input id="ace-dry-dialog-h" type="number" min="0" max="24" step="1" value="4"
          oninput="aceDryDialogInputsChanged()"
          style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center">
        <span style="color:var(--txt2)">:</span>
        <input id="ace-dry-dialog-m" type="number" min="0" max="59" step="1" value="0"
          oninput="aceDryDialogInputsChanged()"
          style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center">
        <span style="color:var(--txt2)">:</span>
        <input id="ace-dry-dialog-s" type="number" min="0" max="59" step="1" value="0"
          oninput="aceDryDialogInputsChanged()"
          style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center">
      </div>
    </div>
    <div style="display:grid;grid-template-columns:repeat(3,1fr);gap:8px;margin-bottom:8px">
      <button class="ace-dry-preset-btn" data-preset="pla" onclick="aceDryDialogPreset('pla')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PLA</button>
      <button class="ace-dry-preset-btn" data-preset="pla_plus" onclick="aceDryDialogPreset('pla_plus')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PLA+</button>
      <button class="ace-dry-preset-btn" data-preset="petg" onclick="aceDryDialogPreset('petg')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PETG</button>
      <button class="ace-dry-preset-btn" data-preset="tpu" onclick="aceDryDialogPreset('tpu')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">TPU</button>
      <button class="ace-dry-preset-btn" data-preset="abs_asa" onclick="aceDryDialogPreset('abs_asa')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">ABS / ASA</button>
      <button class="ace-dry-preset-btn" data-preset="pa_pc" onclick="aceDryDialogPreset('pa_pc')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PA / PC</button>
      <button class="ace-dry-preset-btn" data-preset="custom_1" onclick="aceDryDialogPreset('custom_1')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 1</button>
      <button class="ace-dry-preset-btn" data-preset="custom_2" onclick="aceDryDialogPreset('custom_2')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 2</button>
      <button class="ace-dry-preset-btn" data-preset="custom_3" onclick="aceDryDialogPreset('custom_3')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 3</button>
    </div>
    <div id="ace-dry-dialog-custom-name-row" style="display:none;align-items:center;gap:12px;margin-bottom:14px">
      <label id="ace-dry-dialog-custom-name-label" style="min-width:190px;font-size:12px;color:var(--txt)">Custom Name</label>
      <input id="ace-dry-dialog-custom-name" type="text" maxlength="32" oninput="aceDryDialogInputsChanged()"
        style="width:220px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt)">
    </div>
    <div style="display:flex;justify-content:flex-end;gap:8px">
      <button id="ace-dry-dialog-reset-default" onclick="resetAceDryPresetToDefault()" style="display:none;padding:8px 14px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Reset to Default</button>
      <button id="ace-dry-dialog-save-preset" onclick="saveAceDryPresetAndRestart()" style="display:none;padding:8px 14px;background:var(--warn);border:1px solid transparent;border-radius:8px;color:#fff;cursor:pointer">Save & Restart</button>
      <button id="ace-dry-dialog-cancel" onclick="closeAceDryDialog()" style="padding:8px 14px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Cancel</button>
      <button id="ace-dry-dialog-confirm" onclick="confirmAceDryDialog()" style="padding:8px 16px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Confirm</button>
    </div>
  </div>
</div>

<footer style="text-align:center;padding:12px;font-size:11px;color:var(--txt2);border-top:1px solid var(--border);margin-top:auto">
  &copy; ViewIT 2026
</footer>

<script src="/kx/ui/app.js"></script>
</body>
</html>

## Description I would like to propose a redesign of the main dashboard to make much better use of horizontal screen space on desktop monitors, taking inspiration from the official slicer. The current KX-Bridge dashboard stacks the Camera, Progress, and Temperatures into massive, full-width blocks. This squashes the camera feed, makes the temperature numbers unnecessarily huge, and forces the user to scroll down for basic controls. I propose reorganizing the dashboard into a wide layout, similar to Ancyubic Slicer Next: - Top Row (Full Width): Progress card spanning the entire top, allowing for a wide timeline view. - Left Column (Massive): A much larger, taller Camera feed directly below the progress bar. - Center Column (Compact): A consolidated "Print Settings" wrapper (grouping Nozzle/Bed temps, Print Speed, and Fan controls) scaled down visually to save space, with the AMS/Filament management below it. - Right Column (Narrow): Axis Move / Motion controls. ## Motivation This redesign drastically improves usability on desktop monitors: - Better Camera View: By placing the camera in its own dedicated, widened column rather than forcing it to share vertical space, the max-height restriction can be removed, allowing for a much larger and clearer view of the print bed. - Space Efficiency: Bed and Nozzle temperatures don't need to be so huge and spread across the entire screen. Grouping them with speed and fan controls and applying slight CSS scaling to shrink the UI elements, cleans up the dashboard and eliminates scrolling. - Familiarity: It aligns the KX-Bridge user experience closely with the official Anycubic Slicer Next interface, making it more intuitive for users switching between the two. ## Proposed Implementation Based on the current index.html and /kx/ui/style.css, this can be achieved cleanly using CSS Grid Areas for larger screens without breaking the mobile layout. 1. HTML Adjustments (index.html) Currently, inline styles force the cards to be full width, and missing IDs make them hard to target. Remove `style="grid-column:1/-1" from the <div class="card">` elements for Camera, Progress, Temperatures, and the AMS card. Add explicit IDs to the main cards `(e.g., id="card-camera", id="card-progress", id="card-motion")`. Wrap the Print Settings: Group the Temperatures, Print Speed, and Fan cards inside a new wrapper so they act as a single column block in the grid: ``` <div id="column-settings" style="display: flex; flex-direction: column; gap: 16px;"> <!-- Insert Temperature Card here --> <!-- Insert Print Speed Card here --> <!-- Insert Fan Card here --> </div> ``` 2. CSS Adjustments (/kx/ui/style.css) Introduce a specific grid-template-areas map for screens wider than 1100px to create the layout, placing the progress bar across the top: ``` @media(min-width: 1100px) { .grid { display: grid; grid-template-columns: 2.8fr 1fr 0.9fr; /* Camera massively widened, right columns narrower */ grid-template-areas: "progress progress progress" "camera settings motion" "camera ams motion"; gap: 16px; align-items: start; } /* Map cards to the new grid areas */ #card-progress { grid-area: progress; } #card-camera { grid-area: camera; height: 100%; display: flex; flex-direction: column; } #column-settings { grid-area: settings; display: flex; flex-direction: column; gap: 16px; } #d-ams-card { grid-area: ams; } #card-motion { grid-area: motion; } /* Visually shrink the control elements for space efficiency */ .temp-card-inner { zoom: 0.9; } #card-speed .spd-btn, .step-btns .step-btn { padding: 4px 8px; font-size: 11px; } #card-motion .joypad { zoom: 0.85; margin: 0 auto; } } ``` 3. Allow Camera to Grow Remove the max-height: 320px constraint from .cam-wrap and .cam-wrap img in the stylesheet, and give it a larger min-height (e.g., 550px) so the camera can stretch vertically to fill its massive new dedicated left-column area. 4. Proof of Concept I have attached a modified index.html to this issue as a working example. Please note that this is just a quick proof of concept and not a perfect, final implementation! There are still some minor layout quirks at specific intermediate resolutions (for example, the camera card temporarily jumps to the top right just before the screen narrows enough to trigger the mobile layout fallback or the progress bar at the top could be even smaller). It will definitely need some fine-tuning, but the attached file should give a great feel about what I mean. <details> <summary>index.html</summary> ``` <!DOCTYPE html> <html lang="de" data-theme="dark"> <head> <meta charset="utf-8"> <meta name="viewport" content="width=device-width,initial-scale=1"> <title>KX-Bridge</title> <link rel="stylesheet" href="/kx/ui/style.css"> <link rel="stylesheet" href="/kx/ui/lib/pickr-nano.min.css"> <script src="/kx/ui/lib/pickr.min.js"></script> <style> /* Desktop-optimiertes Layout (Slicer-Stil) */ @media(min-width: 1100px) { #panel-dashboard .grid { display: grid; grid-template-columns: 2.8fr 1fr 0.9fr; /* Kamera massiv verbreitert, rechts schmaler */ grid-template-areas: "progress progress progress" /* Fortschritt komplett über die volle Breite! */ "camera settings motion" "camera ams motion"; /* Kamera nimmt den gesamten Platz links ein */ gap: 16px; align-items: start; } #card-progress { grid-area: progress; } /* Thumbnail auf dem breiten Balken rechts floaten */ #card-progress #d-thumbnail { float: right; width: auto !important; max-width: 200px; height: 110px; margin-left: 20px; margin-bottom: 0; } /* Zeit-Blöcke nebeneinander auf breiten Displays */ #card-progress .time-grid { display: flex; gap: 30px; justify-content: flex-start; } #card-camera { grid-area: camera; display: flex; flex-direction: column; height: 100%; } #column-settings { grid-area: settings; display: flex; flex-direction: column; gap: 16px; } /* Einstellungs- und Motion-Karten kompakter machen (Wunsch) */ #column-settings .card, #card-motion, #d-ams-card { padding: 12px; } #column-settings .card-title, #card-motion .card-title, #d-ams-card .card-title { font-size: 13px; margin-bottom: 10px; } /* Visuelles "Schrumpfen" der Kontroll-Elemente */ .temp-card-inner { zoom: 0.9; } #card-speed .spd-btn { padding: 4px 8px; font-size: 11px; } #card-motion .joypad { zoom: 0.85; margin: 0 auto; } .step-btns .step-btn { padding: 4px 8px; font-size: 11px; } #card-motion { grid-area: motion; } #d-ams-card { grid-area: ams; } /* Kamera unbegrenzt nach unten/oben wachsen lassen */ #card-camera .cam-wrap { flex: 1; display: flex; flex-direction: column; justify-content: center; align-items: center; position: relative; min-height: 550px; /* Noch viel größere Mindesthöhe für die Kamera */ max-height: none !important; background: #111; border-radius: 8px; overflow: hidden; } #card-camera #cam-img { width: 100% !important; height: 100% !important; object-fit: contain; max-height: none !important; } } /* Fallback-Sicherheit für kleinere Displays (Wrapper wird aufgelöst) */ @media(max-width: 1099px) { #column-settings { display: contents; } } </style> </head> <body> <div id="conn-error-banner" style="display:none;background:#c0392b;color:#fff;padding:10px 18px;font-size:14px;text-align:center;position:sticky;top:0;z-index:999;"></div> <div id="file-ready-banner" style="display:none;background:#1a6e3c;color:#fff;padding:10px 18px;font-size:14px;text-align:center;position:sticky;top:0;z-index:998;align-items:center;justify-content:center;gap:12px;flex-wrap:wrap"> <span>📄 <span id="file-ready-name"></span></span> <button id="file-ready-btn" onclick="startReadyFile()" style="padding:5px 16px;background:#fff;color:#1a6e3c;border:none;border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button> <button id="file-slots-btn" onclick="startReadyFileWithSlots()" style="padding:5px 16px;background:rgba(255,255,255,0.15);color:#fff;border:1px solid rgba(255,255,255,0.5);border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button> <button id="file-cancel-btn" onclick="cancelReadyFile()" style="padding:5px 16px;background:rgba(255,255,255,0.15);color:#fff;border:1px solid rgba(255,255,255,0.5);border-radius:6px;font-weight:700;cursor:pointer;font-size:13px"></button> </div> <header> <div class="logo">⬡ KX-Bridge</div> <div style="flex:1"></div> <div id="printer-dropdown-wrap" style="display:none;position:relative"> <button id="printer-dropdown-btn" onclick="togglePrinterDropdown()" style="background:var(--raised);border:1px solid var(--border);border-radius:6px;padding:4px 10px;color:var(--txt);cursor:pointer;font-size:13px;display:flex;align-items:center;gap:6px"> <span id="h-pname">Anycubic Kobra X</span><span style="opacity:.5">▾</span> </button> <div id="printer-dropdown-menu" style="display:none;position:absolute;top:calc(100% + 4px);right:0;background:var(--card);border:1px solid var(--border);border-radius:8px;min-width:200px;z-index:200;box-shadow:0 4px 16px #0006;overflow:hidden"> </div> </div> <div id="h-pname-single" class="hname">Anycubic Kobra X</div> <span id="h-version" style="font-size:11px;opacity:.5;margin-left:6px"></span> <div class="hbadge" id="h-badge"><span class="dot"></span><span id="h-state">Standby</span></div> <button class="theme-btn" onclick="toggleTheme()">☀ / ☾</button> <button class="theme-btn" onclick="showPanel('settings')" id="settings-btn" title="Einstellungen">⚙</button> <button class="conn-btn disconnected" id="conn-btn" onclick="toggleConnection()">⚡ Verbinden</button> </header> <!-- ═══ AMS SLOT EDIT DIALOG ═══ --> <div class="modal-overlay" id="slot-edit-modal" onclick="if(event.target===this)closeSlotEdit()"> <div class="modal-box" style="max-width:340px"> <div style="display:flex;justify-content:space-between;align-items:center;margin-bottom:16px"> <span class="modal-title" id="slot-edit-title"></span> <button onclick="closeSlotEdit()" style="background:none;border:none;color:var(--txt2);font-size:20px;cursor:pointer;line-height:1">✕</button> </div> <div style="display:flex;align-items:flex-start;gap:16px;margin-bottom:12px"> <div id="slot-edit-preview" style="width:56px;height:56px;border-radius:50%;border:3px solid rgba(255,255,255,.2);flex-shrink:0;margin-top:4px"></div> <div style="flex:1;min-width:0"> <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-color"></div> <div id="slot-pickr-anchor"></div> <input type="hidden" id="slot-edit-color"> </div> </div> <div id="slot-color-swatches" style="display:flex;gap:5px;flex-wrap:wrap;margin-bottom:8px"></div> <div id="slot-copy-row" style="display:none;margin-bottom:16px"> <select id="slot-copy-select" style="width:100%;padding:5px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px;box-sizing:border-box" onchange="slotCopyColor(this)"> <option value="" id="lbl-slot-copy-from">Copy color from slot…</option> </select> </div> <div style="margin-bottom:20px"> <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-material"></div> <div style="display:flex;flex-wrap:wrap;gap:6px" id="slot-mat-btns"></div> <input type="text" id="slot-edit-mat" oninput="highlightMatBtn(this.value)" style="margin-top:8px;width:100%;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px;box-sizing:border-box"> </div> <div style="margin-bottom:20px"> <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="lbl-slot-profile"></div> <select id="slot-edit-profile" style="width:100%;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px;box-sizing:border-box"> <option value="" id="slot-profile-default-opt"></option> </select> <div style="font-size:11px;color:var(--txt2);margin-top:4px" id="slot-profile-hint"></div> <a href="#" onclick="event.preventDefault();openProfileImport()" style="display:inline-block;margin-top:6px;font-size:11px;color:var(--accent);text-decoration:none" id="lbl-slot-profile-import">★ Eigene Profile importieren…</a> </div> <button class="btn" id="btn-slot-edit-feed" style="width:100%;margin-bottom:8px" onclick="slotEditFeed()"></button> <button class="modal-save" id="btn-slot-edit-save" onclick="saveSlotEdit()"></button> </div> </div> <!-- ═══ ORCA-PROFILE-IMPORT-DIALOG ═══ --> <div class="modal-overlay" id="profile-import-modal" onclick="if(event.target===this)closeProfileImport()"> <div class="modal-box" style="max-width:480px"> <div style="display:flex;justify-content:space-between;align-items:center;margin-bottom:16px"> <div style="font-size:16px;font-weight:600" id="profile-import-title">Eigene OrcaSlicer-Profile importieren</div> <button onclick="closeProfileImport()" style="background:none;border:none;color:var(--txt2);font-size:20px;cursor:pointer">×</button> </div> <div style="font-size:12px;color:var(--txt2);margin-bottom:12px;line-height:1.5" id="profile-import-help"> Lade ein <b>ZIP</b> deines OrcaSlicer-Filament-Ordners oder einzelne <b>.json</b>-Files hoch.<br> In OrcaSlicer: <i>Help → Show Configuration Folder → user/&lt;id&gt;/filament/</i> </div> <div id="profile-import-drop" style="border:2px dashed var(--border);border-radius:8px;padding:24px;text-align:center;cursor:pointer;margin-bottom:12px" ondragover="event.preventDefault();this.style.borderColor='var(--accent)'" ondragleave="this.style.borderColor='var(--border)'" ondrop="event.preventDefault();this.style.borderColor='var(--border)';doProfileImportUpload(event.dataTransfer.files)" onclick="document.getElementById('profile-import-file').click()"> <div style="font-size:32px;margin-bottom:8px">⬆</div> <div style="font-size:13px;color:var(--txt2)" id="profile-import-dropmsg">Hierher ziehen oder klicken</div> <input type="file" id="profile-import-file" accept=".zip,.json" multiple style="display:none" onchange="doProfileImportUpload(this.files);this.value=''"> </div> <div id="profile-import-status" style="font-size:12px;margin-bottom:12px;min-height:18px"></div> <div style="font-size:11px;color:var(--txt2);margin-bottom:6px" id="profile-import-list-label">Aktuell importiert</div> <div id="profile-import-list" style="max-height:240px;overflow-y:auto;font-size:12px"></div> </div> </div> <div class="layout"> <nav class="sidebar"> <button class="nav-btn active" onclick="showPanel('dashboard')" id="nb-dashboard"> <span class="nav-icon">⊞</span><span class="nav-text">Dashboard</span></button> <button class="nav-btn" onclick="showPanel('printers');loadPrinterTab()" id="nb-printers"> <span class="nav-icon">🖨</span><span class="nav-text">Drucker</span></button> <button class="nav-btn" onclick="showPanel('store');loadStore()" id="nb-store"> <span class="nav-icon">🗂</span><span class="nav-text">Browser</span></button> <button class="nav-btn" onclick="showPanel('console');clearLogBadge()" id="nb-console"> <span class="nav-icon">≡</span><span class="nav-text">Konsole</span><span id="log-badge" style="display:none;margin-left:4px;background:var(--err);color:#fff;border-radius:10px;font-size:10px;padding:1px 5px;font-weight:700"></span></button> <button class="nav-btn" onclick="showPanel('settings')" id="nb-settings"> <span class="nav-icon">⚙</span><span class="nav-text" id="nav-settings">Einstellungen</span></button> </nav> <main> <!-- ═══ DASHBOARD ═══ --> <div class="panel active" id="panel-dashboard"> <div class="grid"> <!-- Fortschritt --> <div class="card" id="card-progress"> <div class="card-title"><span>◉</span> <span id="d-card-progress">Fortschritt</span></div> <img id="d-thumbnail" src="" alt="" style="display:none;width:100%;max-height:160px;object-fit:contain;border-radius:8px;background:#111;margin-bottom:10px"> <div class="pct-big"><span id="d-pct">0</span><small>%</small></div> <div style="display:flex;align-items:center;gap:10px;margin:8px 0"> <div class="progress-bar" style="flex:1;margin:0"><div class="progress-fill" id="d-pbar" style="width:0%"></div></div> <div style="display:flex;flex-direction:column;gap:4px;flex-shrink:0"> <div class="time-block" style="padding:6px 10px;min-width:72px;text-align:center"> <div class="time-label" id="d-lbl-layers"></div> <div class="time-val" style="font-size:16px" id="d-layers">–</div> </div> <div class="time-block" style="padding:4px 10px;min-width:72px;text-align:center"> <div class="time-label" id="d-lbl-zpos">Z</div> <div class="time-val" style="font-size:13px" id="d-zpos">–</div> </div> </div> </div> <div class="time-grid"> <div class="time-block"> <div class="time-label" id="d-lbl-elapsed"></div> <div class="time-val" id="d-elapsed">–</div> </div> <div class="time-block" id="d-slicer-row" style="display:none"> <div class="time-label" id="d-slicer-label"></div> <div class="time-val" id="d-slicer-time">–</div> </div> <div class="time-block" style="color:var(--acc)"> <div class="time-label" id="d-lbl-remain"></div> <div class="time-val" id="d-remain" style="color:var(--acc)">–</div> </div> </div> <div class="fname" id="d-fname" title="" style="margin-top:6px">–</div> <div class="ctrl-btns" id="d-ctrl-btns" style="margin-top:12px;display:none"> <button class="btn btn-pause btn-sm" id="d-btn-pause" onclick="togglePauseResume()">⏸ Pause</button> <button class="btn btn-skip btn-sm" id="d-btn-skip" onclick="openSkipDialog()" style="display:none">✂ <span id="d-btn-skip-label">Objekte</span></button> <button class="btn btn-cancel btn-sm" id="d-btn-cancel" onclick="confirmCancel()">✕ Stopp</button> </div> <div class="ctrl-btns" id="d-idle-btns" style="margin-top:12px;display:none"> <button class="btn btn-accent btn-sm" id="d-idle-print" onclick="startIdleFile()">▶ <span id="d-idle-print-lbl">Drucken</span></button> <button class="btn btn-sm" id="d-idle-slots" onclick="startIdleFileWithSlots()" style="background:var(--raised);color:var(--txt)">⚙ <span id="d-idle-slots-lbl">Slots zuordnen</span></button> <button class="btn btn-cancel btn-sm" id="d-idle-clear" onclick="clearIdleFile()">✕ <span id="d-idle-clear-lbl">Leeren</span></button> </div> </div> <!-- Kamera --> <div class="card" id="card-camera"> <div style="display:flex;align-items:center;justify-content:space-between;margin-bottom:10px"> <div class="card-title" style="margin-bottom:0"><span>📷</span> <span id="d-card-cam">Kamera</span></div> <div style="display:flex;align-items:center;gap:10px"> <span id="d-lbl-light" style="font-size:12px;color:var(--txt2)">💡 Licht</span> <label class="toggle"> <input type="checkbox" id="d-light-toggle" onchange="setLight()"> <span class="toggle-track"></span> <span class="toggle-thumb"></span> </label> </div> </div> <div class="cam-wrap" id="cam-wrap"> <div class="cam-placeholder" id="cam-placeholder"><span id="cam-placeholder-txt">📷 Kamera nicht gestartet</span></div> <div class="cam-spinner" id="cam-spinner"></div> <img id="cam-img" style="display:none;width:100%;height:auto" alt="Kamera"> <div class="cam-overlay" id="cam-overlay" style="display:none"> <div style="font-size:12px;color:#fff" id="cam-fname"></div> </div> <button class="cam-toggle" onclick="toggleCam()" id="cam-toggle-btn">▶ Kamera</button> <button class="cam-toggle" onclick="resetCamera()" id="cam-reset-btn" style="display:none;margin-left:4px" title="Kamera-Stream neu verbinden (nach 429-Sperre)">↺</button> </div> </div> <!-- Consolidated Column: Print Settings --> <div id="column-settings"> <!-- Temperatursteuerung + Verlauf --> <div class="card" id="card-temps"> <div class="card-title"><span>⊙</span> <span id="d-card-temps">Temperaturen</span></div> <div class="temp-card-inner"> <div class="temp-block"> <div class="temp-label" id="d-lbl-nozzle">Nozzle</div> <div class="temp-row"> <div class="temp-val" id="d-nt">–</div> <div class="temp-unit">°C</div> </div> <div class="temp-target">→ <span id="d-nt-t">0</span>°C</div> <div class="progress-bar" style="margin:8px 0 0"> <div class="progress-fill" id="d-ntbar" style="width:0%;background:linear-gradient(90deg,var(--accent2),#ffb020)"></div> </div> <div class="temp-edit" style="margin-top:10px"> <input type="number" class="temp-input" id="p-nozzle-inp" placeholder="Ziel" min="0" max="300" style="flex:1"> <button class="btn btn-sm btn-accent" onclick="setNozzle()"><span class="lbl-set">Set</span></button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="document.getElementById('p-nozzle-inp').value=0;setNozzle()"><span class="lbl-off">Aus</span></button> </div> </div> <div class="temp-block"> <div class="temp-label" id="d-lbl-bed">Bett</div> <div class="temp-row"> <div class="temp-val" id="d-bt">–</div> <div class="temp-unit">°C</div> </div> <div class="temp-target">→ <span id="d-bt-t">0</span>°C</div> <div class="progress-bar" style="margin:8px 0 0"> <div class="progress-fill" id="d-btbar" style="width:0%;background:linear-gradient(90deg,#ff6b35,var(--warn))"></div> </div> <div class="temp-edit" style="margin-top:10px"> <input type="number" class="temp-input" id="p-bed-inp" placeholder="Ziel" min="0" max="120" style="flex:1"> <button class="btn btn-sm btn-accent" onclick="setBed()"><span class="lbl-set">Set</span></button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="document.getElementById('p-bed-inp').value=0;setBed()"><span class="lbl-off">Aus</span></button> </div> </div> </div> <div style="margin-top:14px"> <div style="font-size:10px;color:var(--txt2);margin-bottom:4px" id="d-chart-label">Verlauf (letzte 60 Messungen)</div> <canvas id="d-chart" width="800" height="120" style="width:100%;height:120px;background:var(--raised);border-radius:8px"></canvas> </div> </div> <!-- Print Speed --> <div class="card" id="card-speed"> <div class="card-title"><span>🏎</span> <span id="d-card-speed">Druckgeschwindigkeit</span></div> <div style="display:flex;gap:8px;margin-top:4px"> <button class="spd-btn" id="d-spd-1" onclick="setSpeed(1)"> <span class="spd-icon">🐢</span> <span id="d-spd-lbl-1">Leise</span> </button> <button class="spd-btn spd-active" id="d-spd-2" onclick="setSpeed(2)"> <span class="spd-icon">⚡</span> <span id="d-spd-lbl-2">Normal</span> </button> <button class="spd-btn" id="d-spd-3" onclick="setSpeed(3)"> <span class="spd-icon">🚀</span> <span id="d-spd-lbl-3">Sport</span> </button> </div> <div class="spd-bar" style="margin-top:12px"> <div class="spd-bar-fill" id="d-spd-bar" style="width:50%"></div> </div> </div> <!-- Lüfter --> <div class="card" id="card-fan"> <div class="card-title"><span>🌀</span> <span id="d-card-lightfan">Lüfter</span></div> <div class="slider-row"> <input type="range" class="slider" min="0" max="100" value="0" id="d-fan" oninput="document.getElementById('d-fan-val').textContent=this.value" onchange="setFan()"> <span class="slider-val" id="d-fan-val">0</span> </div> <div style="margin-top:12px;display:flex;gap:8px;flex-wrap:wrap"> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(0)">Aus</button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(25)">25%</button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(50)">50%</button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="quickFan(75)">75%</button> <button class="btn btn-sm btn-accent" onclick="quickFan(100)">100%</button> </div> </div> <!-- Dryer Dry-Wrap integration --> <div id="d-ace-dry-wrap" style="display:none"> <div id="d-ace-dry-grid" style="display:contents"></div> </div> </div> <!-- Achsensteuerung --> <div class="card" id="card-motion"> <div class="card-title"><span>✛</span> <span id="ptitle-motion-xy">Achsensteuerung</span></div> <div style="display:flex;gap:16px;align-items:flex-start;flex-wrap:wrap"> <div style="display:flex;flex-direction:column;align-items:center;gap:6px"> <div class="joypad"> <div></div> <button class="joy" onclick="move(1,1,getStep())" title="Y+">▲</button> <div></div> <button class="joy" onclick="move(0,-1,getStep())" title="X−">◀</button> <div></div> <button class="joy" onclick="move(0,1,getStep())" title="X+">▶</button> <div></div> <button class="joy" onclick="move(1,-1,getStep())" title="Y−">▼</button> <div></div> </div> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt);width:100%" onclick="homeXY()"><span class="lbl-home-xy">Home XY</span></button> </div> <div style="display:flex;flex-direction:column;align-items:center;gap:6px"> <div class="joypad" style="grid-template-columns:52px;grid-template-rows:repeat(2,52px)"> <button class="joy" onclick="move(2,1,getStep())" title="Z+">▲</button> <button class="joy" onclick="move(2,-1,getStep())" title="Z−">▼</button> </div> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt);width:100%" onclick="homeZ()"><span class="lbl-home-z">Home Z</span></button> </div> </div> <div style="display:flex;align-items:center;gap:6px;margin-top:10px;flex-wrap:wrap"> <div class="step-btns" style="margin-top:0"> <button class="step-btn" onclick="setStep(this,0.1)">0.1</button> <button class="step-btn active" onclick="setStep(this,1)">1</button> <button class="step-btn" onclick="setStep(this,5)">5</button> <button class="step-btn" onclick="setStep(this,10)">10</button> </div> <input id="step-custom" type="number" min="0.1" max="260" step="0.1" placeholder="mm" style="width:60px;padding:4px 6px;font-size:12px;border-radius:6px;border:1px solid var(--border);background:var(--raised);color:var(--txt);text-align:center" oninput="setStepCustom(this)"> </div> <div style="display:flex;justify-content:center;gap:8px;margin-top:10px"> <button class="btn btn-sm btn-accent" onclick="homeAll()"><span class="lbl-home-all">Home All</span></button> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="disableMotors()"><span class="lbl-disable-motors">Motors Off</span></button> </div> </div> <!-- AMS --> <div class="card" id="d-ams-card"> <div class="card-title"><span>◫</span> <span id="d-card-ams">Filament</span></div> <div class="ams-slots" id="ams-slots"> <div style="grid-column:1/-1;text-align:center;color:var(--txt2);padding:20px" id="ams-no-data">Keine AMS-Daten empfangen</div> </div> </div> </div> </div> <!-- ═══ DRUCKER ═══ --> <div class="panel" id="panel-printers"> <div class="card"> <div class="card-title" style="display:flex;justify-content:space-between;align-items:center;margin-bottom:12px"> <span id="printers-panel-title">🖨 Drucker</span> <div style="display:flex;gap:8px"> <button onclick="openAddPrinterDialog()" style="font-size:12px;padding:4px 12px;background:var(--accent);border:none;border-radius:6px;color:#fff;cursor:pointer;font-weight:600">+ <span id="add-printer-btn-label">Drucker hinzufügen</span></button> <button onclick="loadPrinterTab()" style="font-size:12px;padding:4px 12px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt2);cursor:pointer">↻</button> </div> </div> <div id="printers-grid" style="display:grid;grid-template-columns:repeat(auto-fill,minmax(260px,1fr));gap:14px"></div> </div> </div> <!-- ═══ GCODE STORE ═══ --> <div class="panel" id="panel-store"> <div class="card"> <div class="card-title" style="display:flex;justify-content:space-between;align-items:center;margin-bottom:10px"> <span id="store-panel-title">🗂 Datei-Browser</span> <button id="store-refresh-btn" onclick="loadStore()" style="font-size:12px;padding:4px 12px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt2);cursor:pointer">↻ Aktualisieren</button> </div> <div style="display:flex;gap:8px;margin-bottom:12px;flex-wrap:wrap"> <input id="store-search" type="text" placeholder="🔍 Suche…" oninput="renderStore()" style="flex:1;min-width:140px;padding:6px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px"> <select id="store-filter" onchange="renderStore()" style="padding:6px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px"> <option value="all" id="sf-all">Alle</option> <option value="completed" id="sf-ok">✓ Erfolgreich</option> <option value="failed" id="sf-err">✗ Fehler</option> <option value="never" id="sf-new">Neu</option> </select> <select id="store-sort" onchange="renderStore()" style="padding:6px 8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:13px"> <option value="date_desc" id="ss-date">↓ Datum</option> <option value="name_asc" id="ss-name">A–Z Name</option> <option value="duration_asc" id="ss-dur">⏱ Druckzeit</option> </select> </div> <div id="store-upload-zone" onclick="document.getElementById('store-upload-input').click()" ondragover="event.preventDefault();this.classList.add('drag-over')" ondragleave="this.classList.remove('drag-over')" ondrop="event.preventDefault();this.classList.remove('drag-over');uploadGcode(event.dataTransfer.files[0])"> <input type="file" id="store-upload-input" accept=".gcode,.bgcode" style="display:none" onchange="uploadGcode(this.files[0]);this.value=''"> <span id="store-upload-icon">⬆</span> <span id="store-upload-label"><span id="store-upload-label-prefix">GCode hierher ziehen oder </span><u id="store-upload-label-browse">durchsuchen</u></span> <span id="store-upload-status" style="display:none"></span> </div> <div id="store-empty" style="display:none;color:var(--txt2);text-align:center;padding:40px 0;font-size:14px"></div> <div id="store-grid" style="display:grid;grid-template-columns:repeat(auto-fill,minmax(200px,1fr));gap:14px"></div> </div> </div> <!-- ═══ CONSOLE ═══ --> <div class="panel" id="panel-console"> <div class="card"> <div class="card-title" style="display:flex;justify-content:space-between;align-items:center"> <span><span>≡</span> <span id="ptitle-console">Ereignis-Log</span></span> <a id="btn-log-dl" href="/api/log/download" download style="font-size:12px;padding:4px 10px;background:var(--raised);border-radius:6px;color:var(--txt2);text-decoration:none">⬇ Download</a> </div> <div style="display:flex;gap:6px;margin-bottom:6px;flex-wrap:wrap;align-items:center"> <input id="log-filter" type="text" placeholder="Filter…" oninput="renderLog()" style="flex:1;min-width:120px;padding:5px 10px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px;font-family:var(--mono)"> <button id="btn-autoscroll" onclick="toggleAutoScroll()" style="font-size:12px;padding:5px 10px;border-radius:6px;border:1px solid var(--border);background:var(--accent);color:#fff;cursor:pointer;white-space:nowrap">⬇ Auto</button> <button onclick="consoleLogs=[];renderLog()" style="font-size:12px;padding:5px 10px;border-radius:6px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">✕ Clear</button> </div> <div style="display:flex;gap:5px;margin-bottom:8px;flex-wrap:wrap"> <span style="font-size:11px;color:var(--txt2);align-self:center;margin-right:2px">Dir:</span> <button class="log-dir-btn active" id="logdir-all" onclick="setLogDir('all')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer"></button> <button class="log-dir-btn" id="logdir-rx" onclick="setLogDir('rx')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">RX</button> <button class="log-dir-btn" id="logdir-tx" onclick="setLogDir('tx')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">TX</button> <span style="font-size:11px;color:var(--txt2);align-self:center;margin-left:6px;margin-right:2px" id="log-lbl-level">Level:</span> <button class="log-lvl-btn active" id="loglvl-all" onclick="setLogLevel('all')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer"></button> <button class="log-lvl-btn" id="loglvl-err" onclick="setLogLevel('err')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">⛔ Errors</button> <button class="log-lvl-btn" id="loglvl-warn" onclick="setLogLevel('warn')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">⚠ Warn</button> <span style="font-size:11px;color:var(--txt2);align-self:center;margin-left:6px;margin-right:2px">Topic:</span> <button class="log-topic-btn" data-topic="multiColorBox" onclick="setLogTopic('multiColorBox')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">AMS</button> <button class="log-topic-btn" data-topic="print" onclick="setLogTopic('print')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">print</button> <button class="log-topic-btn" data-topic="info" onclick="setLogTopic('info')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">info</button> <button class="log-topic-btn" data-topic="status" onclick="setLogTopic('status')" style="font-size:11px;padding:3px 9px;border-radius:5px;border:1px solid var(--border);cursor:pointer">status</button> </div> <div class="console" id="console-log" style="height:calc(100vh - 260px);min-height:160px" onscroll="onLogScroll()"></div> </div> </div> <!-- ═══ EINSTELLUNGEN ═══ --> <div class="panel" id="panel-settings"> <div class="settings-wrap"> <div class="settings-cats"> <button class="set-cat active" id="setcat-connection" onclick="showSettingsCat('connection')"><span>🔌</span> <span id="setcat-lbl-connection">Verbindung</span></button> <button class="set-cat" id="setcat-printer" onclick="showSettingsCat('printer')"><span>🖨</span> <span id="setcat-lbl-printer">Drucker</span></button> <button class="set-cat" id="setcat-display" onclick="showSettingsCat('display')"><span>🎨</span> <span id="setcat-lbl-display">Darstellung</span></button> <button class="set-cat" id="setcat-filament" onclick="showSettingsCat('filament')"><span>🧵</span> <span id="setcat-lbl-filament">Filament</span></button> <button class="set-cat" id="setcat-integrations" onclick="showSettingsCat('integrations')"><span>⚡</span> <span id="setcat-lbl-integrations">Integrationen</span></button> <button class="set-cat" id="setcat-system" onclick="showSettingsCat('system')"><span>⚙</span> <span id="setcat-lbl-system">System</span></button> </div> <div class="settings-content"> <!-- Verbindung --> <div class="set-group active" id="setgrp-connection"> <div class="card"> <div class="card-title"><span>🔌</span> <span id="modal-sec-connection">Verbindung</span></div> <div class="modal-field" style="margin-bottom:12px"> <label id="lbl-printer-name" style="font-weight:600">Drucker-Name</label> <input type="text" id="s-printer-name" placeholder="z.B. Kobra X Links"> </div> <div class="modal-field"> <label id="lbl-printer-ip">Drucker-IP</label> <input type="text" id="s-printer-ip" placeholder="192.168.x.x"> <small id="lbl-ip-hint" style="color:#f80;display:none"></small> </div> <div class="modal-field"> <label id="lbl-mqtt-port">MQTT-Port</label> <input type="number" id="s-mqtt-port" placeholder="9883"> </div> <div class="modal-field"> <label id="lbl-username">MQTT-Benutzername</label> <input type="text" id="s-username" placeholder="userXXXXXXXX" autocomplete="new-password"> </div> <div class="modal-field"> <label id="lbl-password">MQTT-Passwort</label> <input type="password" id="s-password" autocomplete="new-password"> </div> <div class="modal-field"> <label id="lbl-device-id">Device-ID</label> <input type="text" id="s-device-id" placeholder="32 Hex-Zeichen"> </div> <div class="modal-field"> <label id="lbl-mode-id">Mode-ID</label> <input type="text" id="s-mode-id" placeholder="20030"> </div> </div> </div> <!-- Drucker --> <div class="set-group" id="setgrp-printer"> <div class="card"> <div class="card-title"><span>🖨</span> <span id="modal-sec-print">Druckeinstellungen</span></div> <div class="modal-field"> <label id="lbl-default-slot">Standard-Slot (Einfarbdruck)</label> <select id="s-default-slot"> <option value="auto" id="opt-slot-auto">Auto (alle belegten Slots)</option> <option value="0" id="opt-slot-0">Slot 1</option> <option value="1" id="opt-slot-1">Slot 2</option> <option value="2" id="opt-slot-2">Slot 3</option> <option value="3" id="opt-slot-3">Slot 4</option> </select> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <input type="checkbox" id="s-auto-leveling" style="width:auto;margin:0"> <label id="lbl-auto-leveling" style="margin:0;cursor:pointer" for="s-auto-leveling">Auto-Leveling vor Druck</label> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <input type="checkbox" id="s-vibration-compensation" style="width:auto;margin:0"> <label id="lbl-vibration-compensation" style="margin:0;cursor:pointer" for="s-vibration-compensation">Resonance compensation before print</label> </div> <div class="modal-field"> <label id="lbl-file-ready-mode">Nach Upload: Druckstart-Verhalten</label> <select id="s-file-ready-mode"> <option value="1" id="opt-file-ready-dialog">Print-Dialog</option> <option value="0" id="opt-file-ready-banner">Print-Leiste</option> </select> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <input type="checkbox" id="s-camera-on-print" style="width:auto;margin:0"> <label id="lbl-camera-on-print" style="margin:0;cursor:pointer" for="s-camera-on-print">Kamera bei Druckstart einschalten</label> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <input type="checkbox" id="s-web-upload-warning" style="width:auto;margin:0"> <label id="lbl-web-upload-warning" style="margin:0;cursor:pointer" for="s-web-upload-warning">Warnung bei Web-Upload-Druck anzeigen</label> </div> </div> </div> <!-- Darstellung --> <div class="set-group" id="setgrp-display"> <div class="card"> <div class="card-title"><span>🎨</span> <span id="setcat-lbl-display2">Darstellung</span></div> <div class="modal-field"> <label id="lbl-set-lang">Sprache</label> <select id="s-lang-select" onchange="setLanguage(this.value)"> <option value="de">Deutsch</option> <option value="en">English</option> <option value="es">Espanol</option> <option value="fr">Français</option> <option value="it">Italiano</option> <option value="zh-cn">中文(简体)</option> </select> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="toggleTheme()"><span id="lbl-set-theme">Hell / Dunkel umschalten</span></button> </div> <div class="modal-field"> <label id="lbl-poll-interval">Poll-Intervall (Sekunden)</label> <input type="number" id="s-poll-interval" min="1" max="60" step="1" placeholder="3" oninput="onPollIntervalInput()"> <small style="color:var(--txt2)" id="lbl-poll-hint">Wie oft die Bridge den Drucker-Status abfragt</small> </div> <div class="modal-field" style="flex-direction:row;align-items:center;gap:10px"> <input type="checkbox" id="s-verbose-http-log" style="width:auto;margin:0"> <label id="lbl-verbose-http-log" style="margin:0;cursor:pointer" for="s-verbose-http-log">Log every HTTP request (verbose)</label> </div> </div> </div> <!-- Filament --> <div class="set-group" id="setgrp-filament"> <div class="card"> <div class="card-title"><span>🧵</span> <span id="modal-sec-orca-profiles">OrcaSlicer-Profile</span></div> <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="orca-profiles-hint"> Eigene Profile aus OrcaSlicer importieren (User-Dir öffnen via Help → Show Configuration Folder) </div> <div id="orca-profiles-list" style="margin-bottom:8px;font-size:12px;color:var(--txt2)"></div> <button class="btn btn-sm" id="btn-orca-profiles-import" onclick="openProfileImport()" style="background:var(--raised);color:var(--txt)"> ⬆ <span id="lbl-orca-profiles-import">Profile importieren</span> </button> </div> <div class="card"> <div class="card-title"><span>🎯</span> <span id="lbl-filament-mapping">Filament-Profil-Mapping (pro Slot)</span></div> <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="filament-mapping-hint"> Festes Orca-Profil pro AMS-Slot. Beim Slicer-Sync sendet die Bridge dieses Profil statt „Generic". </div> <div id="filament-mapping-list"></div> <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:8px" onclick="saveFilamentMapping()"><span id="lbl-filament-mapping-save">Mapping speichern</span></button> </div> <div class="card"> <div class="card-title"><span>👁</span> <span id="lbl-visible-vendors">Sichtbare Hersteller (Profil-Dropdown)</span></div> <div style="font-size:11px;color:var(--txt2);margin-bottom:8px" id="visible-vendors-hint"> Nur diese Hersteller erscheinen im Slot-Profil-Dropdown. Nichts ausgewählt = alle anzeigen. „Generic" und eigene Profile sind immer sichtbar. </div> <input type="text" id="vendor-filter-search" placeholder="Hersteller suchen…" oninput="renderVendorChecklist()" style="width:100%;padding:6px 10px;margin-bottom:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);font-size:12px"> <div id="visible-vendors-list" style="max-height:260px;overflow-y:auto;border:1px solid var(--border);border-radius:6px;padding:8px"></div> <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:8px" onclick="saveVisibleVendors()"><span id="lbl-visible-vendors-save">Auswahl speichern</span></button> </div> <div class="card" id="spoolman-slot-card" style="display:none"> <div class="card-title"><span>🧵</span> <span id="lbl-spoolman-slot-assign">Spoolman — Slot-Zuordnung</span></div> <div style="font-size:11px;color:var(--txt2);margin-bottom:10px" id="lbl-spoolman-slot-hint">Spoolman-Spool pro AMS-Slot zuweisen. Der Verbrauch wird beim Druck automatisch gemeldet.</div> <div id="spoolman-slot-rows" style="display:flex;flex-direction:column;gap:8px"></div> <button class="btn btn-sm" style="background:var(--accent);color:#fff;margin-top:10px" onclick="saveSpoolmanSlots()"><span id="lbl-spoolman-slot-save">Zuordnung speichern</span></button> </div> </div> <!-- Integrationen --> <div class="set-group" id="setgrp-integrations"> <!-- Spoolman --> <div class="card"> <div class="card-title"><span>🧵</span> <span id="modal-sec-spoolman">Spoolman</span></div> <div class="set-row"> <label id="lbl-spoolman-url">Server-URL</label> <input type="text" id="s-spoolman-url" placeholder="http://spoolman:7912" style="width:200px"> </div> <div class="set-row"> <label id="lbl-spoolman-sync-rate">Sync-Rate (s, 0=Druckende)</label> <input type="number" id="s-spoolman-sync-rate" min="0" max="3600" value="30" style="width:80px"> </div> <div id="spoolman-status-row" style="margin-top:6px;font-size:12px;color:var(--txt2)"> <span id="spoolman-status-dot">●</span> <span id="spoolman-status-lbl"></span> </div> </div> <!-- Obico --> <div class="card" style="margin-top:10px"> <div class="card-title"><span>🕵</span> <span id="modal-sec-obico">Obico</span></div> <div style="font-size:12px;color:var(--txt2);line-height:1.6" id="obico-info-box"> Obico wird über den <code>moonraker-obico</code>-Container konfiguriert.<br> Config-Datei: <code id="obico-cfg-path">/mnt/dockerdata/KobraXStack/moonraker-obico/moonraker-obico.cfg</code> </div> </div> </div> <!-- System --> <div class="set-group" id="setgrp-system"> <div class="card"> <div class="card-title"><span>⚙</span> <span id="modal-sec-version">Version</span></div> <div class="update-row"> <span id="s-version-label" style="font-size:13px;color:var(--txt)">–</span> <button class="btn btn-sm" style="background:var(--raised);color:var(--txt)" onclick="checkUpdate()" id="btn-update-check">🔄 <span id="lbl-update-check">Auf Updates prüfen</span></button> </div> <div class="update-status" id="update-status" style="margin-top:6px"></div> <button class="btn btn-sm btn-accent" id="btn-update-apply" style="display:none;margin-top:8px" onclick="applyUpdate()"> <span id="lbl-update-apply">Jetzt installieren</span> </button> <div id="update-changelog" style="display:none;margin-top:10px;background:var(--raised);border-radius:6px;padding:10px;font-size:11px;font-family:var(--mono);color:var(--txt2);white-space:pre-wrap;max-height:180px;overflow-y:auto;line-height:1.6"></div> </div> </div> <button class="modal-save" onclick="saveSettings()" id="btn-save-settings" style="margin-top:14px">Speichern &amp; Neustart</button> </div> </div> </div> </main> </div> <nav class="bottom-nav"> <button class="bnav-btn active" onclick="showPanel('dashboard')" id="bnb-dashboard"><span class="bnav-icon">⊞</span>Dashboard</button> <button class="bnav-btn" onclick="showPanel('printers');loadPrinterTab()" id="bnb-printers"><span class="bnav-icon">🖨</span>Drucker</button> <button class="bnav-btn" onclick="showPanel('store');loadStore()" id="bnb-store"><span class="bnav-icon">🗂</span>Browser</button> <button class="bnav-btn" onclick="showPanel('console');clearLogBadge()" id="bnb-console"><span class="bnav-icon">≡</span>Log<span id="log-badge-bot" style="display:none;margin-left:3px;background:var(--err);color:#fff;border-radius:10px;font-size:10px;padding:1px 4px;font-weight:700"></span></button> <button class="bnav-btn" onclick="showPanel('settings')" id="bnb-settings"><span class="bnav-icon">⚙</span>Setup</button> </nav> <!-- Web-Upload-Verify-Dialog --> <div class="modal-overlay" id="store-web-verify-dialog" onclick="if(event.target===this)closeStoreWebVerifyDialog()"> <div class="modal-box" style="max-width:420px;width:100%"> <div class="modal-header" style="margin-bottom:14px"> <span class="modal-title" id="store-web-verify-title">Datei verifizieren</span> <button onclick="closeStoreWebVerifyDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button> </div> <p id="store-web-verify-msg" style="font-size:13px;color:var(--txt);margin-bottom:12px">Bitte bestätige, dass diese Datei für den Anycubic Kobra X erstellt wurde.</p> <div id="store-web-verify-status" style="font-size:12px;color:var(--txt2);min-height:16px;margin-bottom:8px"></div> <div style="display:flex;gap:8px;justify-content:flex-end"> <button id="store-web-verify-abort" onclick="closeStoreWebVerifyDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button> <button id="store-web-verify-confirm" onclick="confirmStoreWebVerify()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Bestätigen</button> </div> </div> </div> <!-- Filament-Slot-Dialog --> <div class="modal-overlay" id="filament-dialog" onclick="if(event.target===this)closeFilamentDialog()"> <div class="modal-box" style="max-width:380px;width:100%"> <div class="modal-header" style="margin-bottom:14px"> <span class="modal-title" id="fd-title" style="font-size:14px;word-break:break-all"></span> <button onclick="closeFilamentDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button> </div> <p id="fd-slots-hint" style="font-size:12px;color:var(--txt2);margin-bottom:10px">GCode-Kanal → AMS-Slot zuweisen:</p> <div id="fd-mismatch-warn" style="display:none;margin-bottom:10px;padding:8px 10px;background:rgba(255,160,0,.12);border:1px solid rgba(255,160,0,.4);border-radius:8px;font-size:11px;color:#ffa000"></div> <div id="fd-slots" style="display:flex;flex-direction:column;gap:8px;margin-bottom:16px"></div> <div id="fd-objects-section" style="display:none;margin-bottom:16px"> <button type="button" id="fd-objects-toggle" onclick="toggleFdObjects()" style="display:flex;align-items:center;gap:8px;width:100%;padding:8px 10px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer;font-size:12px;text-align:left"> <span id="fd-objects-arrow" style="font-size:10px;transition:transform .15s">▶</span> <span>✂ <span id="fd-objects-toggle-lbl">Objekte überspringen</span></span> <span id="fd-objects-count" style="margin-left:auto;color:var(--txt2);font-weight:600"></span> </button> <div id="fd-objects-body" style="display:none;margin-top:8px"> <div id="fd-objects-svg" style="display:none;background:var(--raised);border:1px solid var(--border);border-radius:8px;padding:6px;margin-bottom:8px;text-align:center"></div> <div id="fd-objects" style="display:flex;flex-direction:column;gap:6px;max-height:140px;overflow-y:auto"></div> </div> </div> <div style="margin-bottom:14px;padding:10px 12px;background:var(--raised);border-radius:8px;border:1px solid var(--border)"> <div style="font-size:11px;font-weight:600;color:var(--txt2);margin-bottom:8px;text-transform:uppercase;letter-spacing:.05em" id="fd-options-title">Druckoptionen</div> <div style="display:flex;align-items:center;gap:8px"> <input type="checkbox" id="fd-auto-leveling" style="width:auto;margin:0"> <label for="fd-auto-leveling" style="margin:0;cursor:pointer;font-size:13px" id="fd-lbl-auto-leveling">Auto-Leveling</label> </div> </div> <div id="fd-spoolman-section" style="display:none;margin-bottom:16px;border-top:1px solid var(--border);padding-top:12px"> <p style="font-size:12px;color:var(--txt2);margin-bottom:8px;display:flex;align-items:center;gap:6px"> <span id="fd-spoolman-lbl">🧵 Spoolman</span> <span id="fd-spoolman-loading" style="display:none;font-size:10px">…</span> </p> <div id="fd-spoolman-rows" style="display:flex;flex-direction:column;gap:6px"></div> </div> <div style="display:flex;gap:8px;justify-content:flex-end"> <button id="fd-cancel" onclick="closeFilamentDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button> <button id="fd-print" onclick="confirmFilamentPrint()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">▶ Drucken</button> </div> </div> </div> <!-- Drucker-hinzufügen-Dialog --> <div class="modal-overlay" id="add-printer-dialog" onclick="if(event.target===this)closeAddPrinterDialog()"> <div class="modal-box" style="max-width:380px;width:100%"> <div class="modal-header" style="margin-bottom:14px"> <span class="modal-title" id="apd-title">Drucker hinzufügen</span> <button onclick="closeAddPrinterDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button> </div> <label id="apd-lbl-ip" style="display:block;font-size:12px;color:var(--txt2);margin-bottom:4px">Drucker-IP</label> <input type="text" id="apd-ip" placeholder="192.168.1.100" style="width:100%;box-sizing:border-box;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);margin-bottom:10px"> <label id="apd-lbl-name" style="display:block;font-size:12px;color:var(--txt2);margin-bottom:4px">Name (optional)</label> <input type="text" id="apd-name" placeholder="z.B. Kobra X Wohnzimmer" style="width:100%;box-sizing:border-box;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);margin-bottom:6px"> <div id="apd-status" style="font-size:12px;margin:8px 0;min-height:16px;color:var(--txt2)"></div> <div style="display:flex;gap:8px;justify-content:flex-end"> <button id="apd-cancel" onclick="closeAddPrinterDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button> <button id="apd-confirm" onclick="confirmAddPrinter()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Hinzufügen</button> </div> </div> </div> <!-- Mid-Print Skip-Dialog --> <div class="modal-overlay" id="skip-dialog" onclick="if(event.target===this)closeSkipDialog()"> <div class="modal-box" style="max-width:420px;width:100%"> <div class="modal-header" style="margin-bottom:14px"> <span class="modal-title" id="skip-title">✂ Objekte überspringen</span> <button onclick="closeSkipDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button> </div> <p id="skip-hint" style="font-size:12px;color:var(--txt2);margin-bottom:10px">Objekte abwählen, die nicht weiter gedruckt werden sollen:</p> <div id="skip-svg" style="display:none;background:var(--raised);border:1px solid var(--border);border-radius:8px;padding:6px;margin-bottom:10px;text-align:center"></div> <div id="skip-list" style="display:flex;flex-direction:column;gap:6px;max-height:200px;overflow-y:auto;margin-bottom:12px"></div> <div id="skip-status" style="font-size:12px;color:var(--txt2);min-height:16px;margin-bottom:8px"></div> <div style="display:flex;gap:8px;justify-content:flex-end"> <button onclick="closeSkipDialog()" style="padding:8px 16px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Abbrechen</button> <button id="skip-confirm" onclick="confirmSkip()" style="padding:8px 18px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Überspringen</button> </div> </div> </div> <!-- ACE Dryer Temp/Time Settings Dialog --> <div class="modal-overlay" id="ace-dry-dialog" onclick="if(event.target===this)closeAceDryDialog()"> <div class="modal-box" style="max-width:560px;width:100%"> <div class="modal-header" style="margin-bottom:10px"> <span class="modal-title" id="ace-dry-dialog-title">Dryer Temp/Time Settings</span> <button onclick="closeAceDryDialog()" style="background:none;border:none;font-size:18px;cursor:pointer;color:var(--txt2)">✕</button> </div> <div style="display:flex;align-items:center;gap:12px;margin-bottom:8px"> <label id="ace-dry-dialog-temp-label" style="min-width:190px;font-size:12px;color:var(--txt)">Temperature (30-80°C)</label> <input id="ace-dry-dialog-temp" type="number" min="30" max="80" step="1" oninput="aceDryDialogInputsChanged()" style="width:130px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center" value="45"> </div> <div style="display:flex;align-items:center;gap:12px;margin-bottom:16px"> <label id="ace-dry-dialog-time-label" style="min-width:190px;font-size:12px;color:var(--txt)">Rem. Time (h:m:s)</label> <div style="display:flex;align-items:center;gap:8px"> <input id="ace-dry-dialog-h" type="number" min="0" max="24" step="1" value="4" oninput="aceDryDialogInputsChanged()" style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center"> <span style="color:var(--txt2)">:</span> <input id="ace-dry-dialog-m" type="number" min="0" max="59" step="1" value="0" oninput="aceDryDialogInputsChanged()" style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center"> <span style="color:var(--txt2)">:</span> <input id="ace-dry-dialog-s" type="number" min="0" max="59" step="1" value="0" oninput="aceDryDialogInputsChanged()" style="width:70px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt);text-align:center"> </div> </div> <div style="display:grid;grid-template-columns:repeat(3,1fr);gap:8px;margin-bottom:8px"> <button class="ace-dry-preset-btn" data-preset="pla" onclick="aceDryDialogPreset('pla')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PLA</button> <button class="ace-dry-preset-btn" data-preset="pla_plus" onclick="aceDryDialogPreset('pla_plus')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PLA+</button> <button class="ace-dry-preset-btn" data-preset="petg" onclick="aceDryDialogPreset('petg')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PETG</button> <button class="ace-dry-preset-btn" data-preset="tpu" onclick="aceDryDialogPreset('tpu')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">TPU</button> <button class="ace-dry-preset-btn" data-preset="abs_asa" onclick="aceDryDialogPreset('abs_asa')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">ABS / ASA</button> <button class="ace-dry-preset-btn" data-preset="pa_pc" onclick="aceDryDialogPreset('pa_pc')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">PA / PC</button> <button class="ace-dry-preset-btn" data-preset="custom_1" onclick="aceDryDialogPreset('custom_1')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 1</button> <button class="ace-dry-preset-btn" data-preset="custom_2" onclick="aceDryDialogPreset('custom_2')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 2</button> <button class="ace-dry-preset-btn" data-preset="custom_3" onclick="aceDryDialogPreset('custom_3')" style="padding:8px;border-radius:8px;border:1px solid var(--border);background:var(--raised);color:var(--txt2);cursor:pointer">Custom 3</button> </div> <div id="ace-dry-dialog-custom-name-row" style="display:none;align-items:center;gap:12px;margin-bottom:14px"> <label id="ace-dry-dialog-custom-name-label" style="min-width:190px;font-size:12px;color:var(--txt)">Custom Name</label> <input id="ace-dry-dialog-custom-name" type="text" maxlength="32" oninput="aceDryDialogInputsChanged()" style="width:220px;padding:8px;background:var(--raised);border:1px solid var(--border);border-radius:6px;color:var(--txt)"> </div> <div style="display:flex;justify-content:flex-end;gap:8px"> <button id="ace-dry-dialog-reset-default" onclick="resetAceDryPresetToDefault()" style="display:none;padding:8px 14px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Reset to Default</button> <button id="ace-dry-dialog-save-preset" onclick="saveAceDryPresetAndRestart()" style="display:none;padding:8px 14px;background:var(--warn);border:1px solid transparent;border-radius:8px;color:#fff;cursor:pointer">Save & Restart</button> <button id="ace-dry-dialog-cancel" onclick="closeAceDryDialog()" style="padding:8px 14px;background:var(--raised);border:1px solid var(--border);border-radius:8px;color:var(--txt);cursor:pointer">Cancel</button> <button id="ace-dry-dialog-confirm" onclick="confirmAceDryDialog()" style="padding:8px 16px;background:var(--accent);color:#fff;border:none;border-radius:8px;cursor:pointer;font-weight:600">Confirm</button> </div> </div> </div> <footer style="text-align:center;padding:12px;font-size:11px;color:var(--txt2);border-top:1px solid var(--border);margin-top:auto"> &copy; ViewIT 2026 </footer> <script src="/kx/ui/app.js"></script> </body> </html> ``` </details>


116 KiB

Blaim added the

enhancement

label 2026-07-12 15:53:47 +02:00

Sign in to join this conversation.

No Branch/Tag Specified

Branches Tags

nightly

master

nightly-0.9.28-nightly26

nightly-0.9.28-nightly25

nightly-0.9.28-nightly24

nightly-0.9.28-nightly23

nightly-0.9.28-nightly22

nightly-0.9.28-nightly21

nightly-0.9.28-nightly20

nightly-0.9.28-nightly19

nightly-0.9.28-nightly18

nightly-0.9.28-nightly17

nightly-0.9.28-nightly16

nightly-0.9.28-nightly15

nightly-0.9.28-nightly14

nightly-0.9.28-nightly13

nightly-0.9.28-nightly12

nightly-0.9.28-nightly11

nightly-0.9.28-nightly10

nightly-0.9.28-nightly9

nightly-0.9.28-nightly8

nightly-0.9.28-nightly7

nightly-0.9.28-nightly6

nightly-0.9.28-nightly5

nightly-0.9.28-nightly4

nightly-0.9.28-nightly3

nightly-0.9.28-nightly2

nightly-0.9.28-nightly1

v0.9.27

nightly-0.9.27-nightly9

nightly-0.9.27-nightly8

nightly-0.9.27-nightly7

nightly-0.9.27-nightly6

nightly-0.9.27-nightly5

nightly-0.9.27-nightly4

nightly-20260625

nightly-0.9.27-nightly3

nightly-0.9.27-nightly2

nightly-20260624

nightly-0.9.27-nightly1

v0.9.26

v0.9.25

v0.9.24

v0.9.23

v0.9.22

v0.9.21

v0.9.20

v0.9.19.1

v0.9.19

v0.9.18

v0.9.17

v0.9.16

v0.9.15

v0.9.14

v0.9.13

v0.9.12

v0.9.11

v0.9.10

v0.9.9

v0.9.8

v0.9.7

v0.9.6.1

v0.9.6

v0.9.5

v0.9.4

v0.9.3

v0.9.2

v0.9.1-dev+f2d6af6

v0.9.1-dev+1828eec

v0.9.1-dev+14cfb27

v0.9.1-beta15

v0.9.1-beta14

v0.9.1-beta12

v0.9.1-beta11

v0.9.1-beta10

v0.9.1-beta9

v0.9.1-beta8

v0.9.1-beta7

v0.9.1-beta6

v0.9.1-beta5

v0.9.1-beta4

v0.9.1-beta3

v0.9.1-beta2

v0.9.1-beta1

v0.9.0-beta1

Labels

Clear labels

bug

Something is not working

bug

documentation

duplicate

This issue or pull request already exists

enhancement

New feature

enhancement

help wanted

Need some help

invalid

Something is wrong

known-issue

question

More information is needed

wontfix

This won't be fixed

No Label

enhancement

Milestone

No items

No Milestone

Projects

Clear projects

No project

Assignees

Clear assignees

viewit

No Assignees

1 Participants

Notifications

Subscribe

Due Date

No due date set.

Dependencies

No dependencies set.

Reference: viewit/KX-Bridge-Release#89

No description provided.
